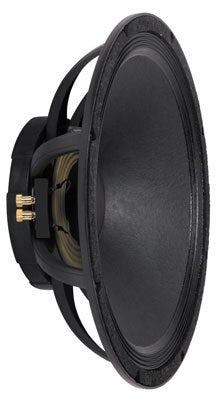

This high power 15" trades deep bass for extreme high efficiency. Ideal for 2-way applications that do not require extended bass response.
Features
- Field-replaceable basket
- Kevlar® reinforced cones for increased strength
- Polyimide-impregnated fiberglass former for higher sensitivity and frequency response
- Die-cast aluminum frame
- High power handling
- 4" diameter edge-wound aluminum ribbon wire voice coil
- Solderless diffusion welded OFHC copper leads
Specifications
- Power Handling (RMS): 500 Watts
- Power Handling (max): 2,000 Watts
- Impedance: 8 ohms
- Frequency Response: 40 to 2,000 Hz
- Sensitivity: 100.3 dB 1W/1m
- Voice Coil Diameter: 4"
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 51.2 Hz
- DC Resistance (Re): 5.32 ohms
- Voice Coil Inductance (Le): 0.34 mH
- Mechanical Q (Qms): 10.60
- Electromagnetic Q (Qes): 0.35
- Total Q (Qts): 0.34
- Compliance Equivalent Volume (Vas): 6.44 ft.³
- Mechanical Compliance of Suspension (Cms): 0.18 mm/N
- BL Product (BL): 16.04 Tm
- Diaphragm Mass Inc. Airload (Mms): 52.9g
- Maximum Linear Excursion (Xmax): 1.9 mm
- Surface Area of Cone (Sd): 840 cm²
