Accurate response down to 20Hz!

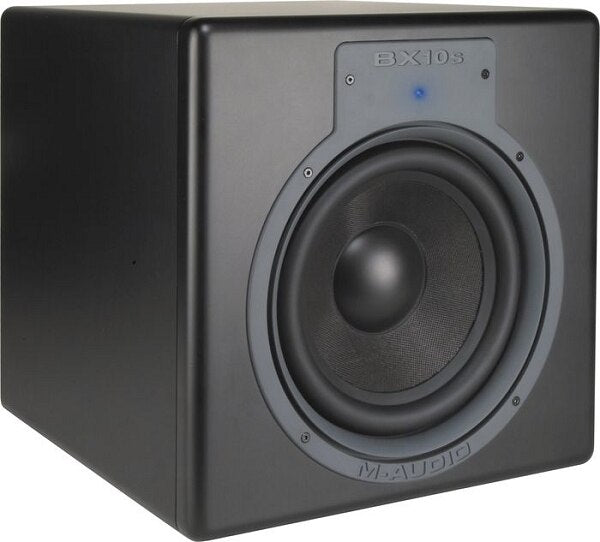

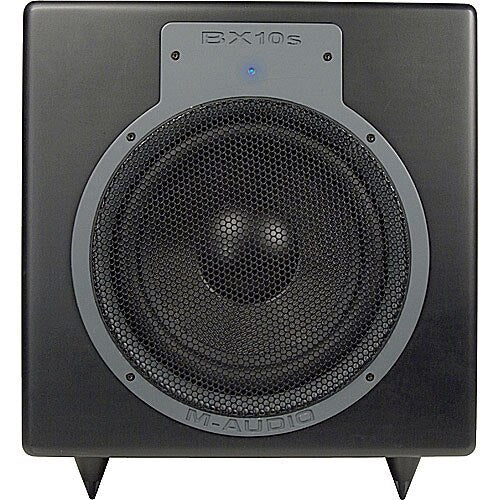

The BX10s subwoofer from M-Audio offers a large amount of power in a compact package. The 10-inch driver is powered by a 240W amplifier to deliver a response all the way down to 20Hz. A perfect companion to the BX5a or BX8a speakers, the BX10s is ideal for home or project studios where space is at a premium, but an excellent bass response is needed to meet the increasing demands of modern audio. The subwoofer is fully video shielded for use near video monitors and offers both XLR and 1/4" I/Os for connection with virtually any existing system.
Offering a user-defined crossover between 50 and 200Hz, the BX10s provides improved fidelity over using speakers by themselves, because each component only has to reproduce frequencies that it's ideally suited for. A subwoofer bypass, controlled by the included foot pedal, is built-in so you can hear what your mix sounds like with and without a subwoofer, for the best in monitoring accuracy.
Features
- Compact and powerful 10" subwoofer
- Powered by a 240W amplifier
- Frequency response of 20 to 200Hz
- Rear bass-reflex port
- Adjustable gain
- XLR and 1/4" TRS I/Os for wide compatibility
- Variable 50-200Hz crossover with settings for Dolby Digital, DTS, and THX compliance

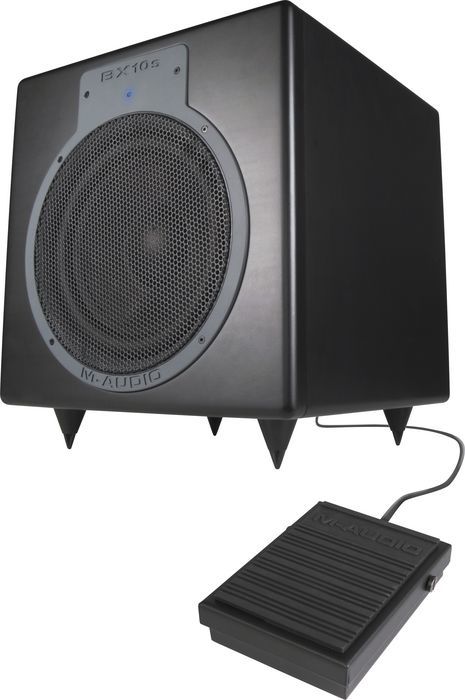

- Subwoofer can be bypassed with included foot pedal
- Automatic sleep function
- 0/180 degree phase switch
- Video shielded for use near video monitors
Specifications
- Driver: 10" (254mm) Composite
- Amplifier: 240W
- Crossover: Variable 50-200Hz with Easy Settings for Dolby Digital, DTS, and THX Compliance
- Frequency Range: 20Hz - 200kHz
- Maximum Sound Pressure Level (SPL): 100dB @ 1 meter (Maximum Volume)

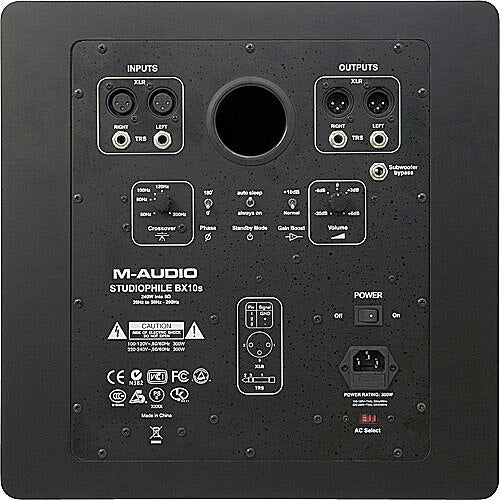

- Connectors
- 2 x XLR Inputs
- 2 x XLR Outputs
- 2 x 1/4" (6.3mm) Inputs
- 2 x 1/4" (6.3mm) Outputs
- 1 x 1/4" (6.3mm) Foot Switch Jack
- 1 x AC Power In
- Input Impedance
- 20 k ohms, Balanced
- 10 k ohms, Unbalanced
- Controls and Indicators
- 1 x Volume Control
- 1 x 10dB Bass Boost Switch
- 1 x Sleep Mode Switch
- 1 x Phase Inverse Switch
- 1 x Variable Crossover Control
- 1 x Voltage Selector Switch
- 1 x Blue Power LED
- 1 x Red Standby/Bypass LED
- Shielded: Yes
- Dimensions (HxWxD): 15 x 15 x 15" (381 x 381 x 381 mm)
- Weight: 54.6 lbs (24.75 kg)
