Clean, Uncolored Highs from Ribbon Drivers

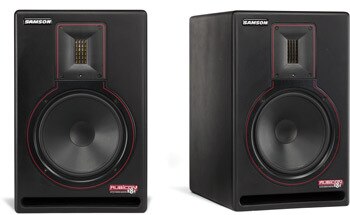

The Rubicon R8A from Samson is an extremely accurate active two-way monitor perfect for use in project or professional studios. The 2" Velocity Ribbon high frequency driver offers even dispersion with no resonant color, ensuring the most natural, precise audio possible. The 8" cone provides a low-end response all the way down to 40Hz for an excellent bass experience.

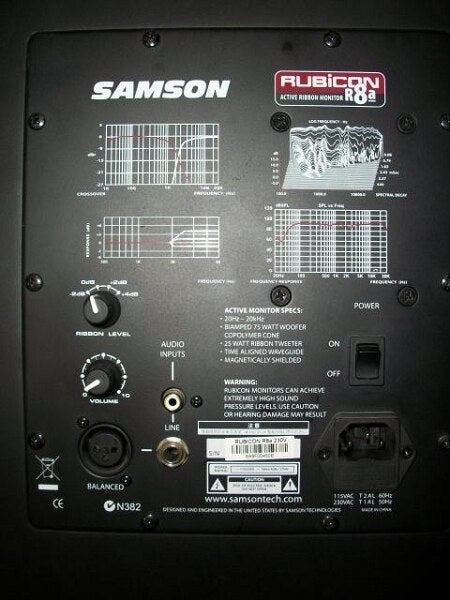

Housed in a shelf-ported wood enclosure, the R8a is powered by dual amplifiers for low distortion. RCA, XLR, and 1/4" input connectors are provided on the rear panel for compatibility with virtually any existing sound system. A four-position high frequency level control lets you choose the amount of output from the ribbon tweeter.
Features
- Active two-way studio monitor
- Powered by separate 75W and 25W amplifiers for low distortion
- 2" ribbon tweeter provides exceptionally accurate sound
- 8" low frequency driver for a response down to 40Hz
- RCA, XLR, and 1/4" inputs for versatility
- Active crossover with multi-pole design for linear response
- Four-position high frequency level control
- Shielded for use near video monitors
Specifications
- Low Frequency Driver: 8" (203mm) Copolymer Woofer with Butyl Surround
- High Frequency Driver: 2" (50mm) Velocity Ribbon Tweeter
- LF Amplifier: 75W RMS
- HF Amplifier: 25W RMS
- Crossover: 3kHz, 4 Pole (24dB/Oct) Filter
- Frequency Range: 40Hz - 27kHz (±3dB)
- Maximum Sound Pressure Level (SPL): Approx. 95dB
- Connectors
- 1 x XLR Input, Balanced
- 1 x RCA Input, Unbalanced
- 1 x 1/4" (6.3mm) TRS Input, Balanced
- 1 x AC Power Input
- Input Impedance: Not Specified by Manufacturer
- Controls and Indicators
- 1 x Red Power LED (Front)
- 1 x Power Switch (Rear)
- 1 x Volume Control Knob (Rear)
- 1 x 4-Position High Frequency Level Control (Rear)
- Shielded: Yes
- Dimensions (HxWxD): 17.25 x 11.2 x 12" (437 x 284 x 305mm)
- Weight: 26.5 lbs (12 kg)
