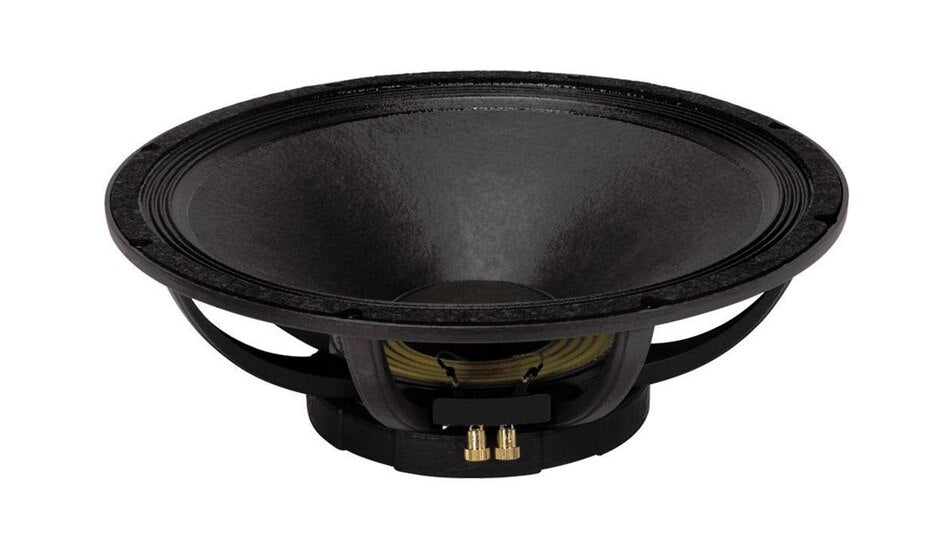

Peavey 1808-4 SPS BW Replacement Basket
Specifications
- 18"
- Impedance: 4 Ohms
- Power capacity: 2000 W Peak 1000 W Program 500 W Continuous
- Sensitivity: 97.5 dB / 1 W 1 m
- Usable freq. range: 35 Hz ~ 1 kHz
- Cone: Kevlar® impregnated cellulose
- Voice coil diameter: 4.0" / 100 mm
- Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass
- Net weight lb. / kg: 18 lbs. / 8.2 kg
- Znom (ohms) 4
- Revc (ohms) 3.47
- Sd (Square Meters) 0.1237
- BL (T/M) 13.94
- Fo (Hz) 38.9
- Vas (liters) 311.7
- Cms (uM/N) 143.4
- Mms (gm) 116.6
- Qms 10.215
- Qes 0.509
- Qts 0.485
- Xmax (mm) 2.0
- Le (mH) 0.16
- SPL (1W 1m) 97.5
- No (%) 3.50%
- Vd (cu. in. / ml) 29.5 / 483
- Pmax (Watts pgm.) 1000
- Disp (cu. in. / ml) 228 / 3737
