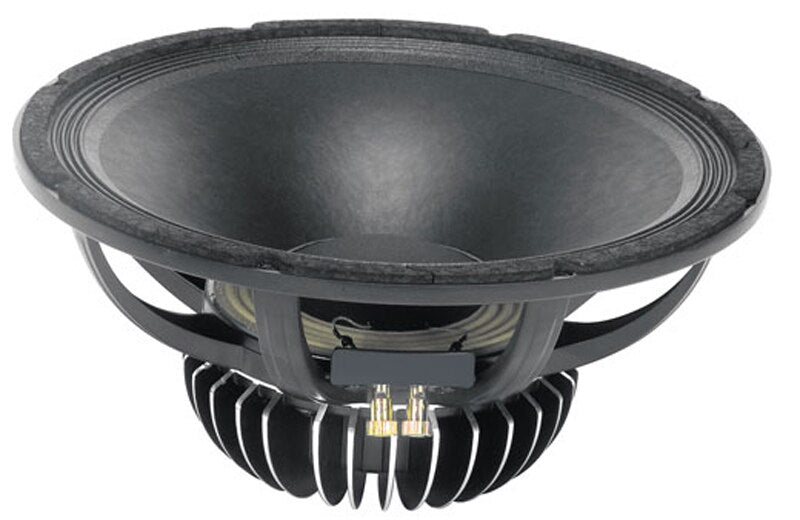

Peavey's 15" BWX Neo Subwoofer features a Kevlar® impregnated cellulose cone. The aluminum ribbon wire voice coil is wound on a polyimide-impregnated fiberglass former with Nomex® stiffener and solderless diffusion welded OFHC copper leads.
Specifications
- Power Handling (RMS): 650 Watts
- Power Handling (max): 1,300 Watts
- Impedance: 8 ohms
- Frequency Response: 40 to 2,000 Hz
- Sensitivity: 100.3 dB 1W/1m
- Voice Coil Diameter: 4"
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 51.2 Hz
- DC Resistance (Re): 5.32 ohms
- Voice Coil Inductance (Le): 0.34 mH
- Mechanical Q (Qms): 10.60
- Electromagnetic Q (Qes): 0.35
- Total Q (Qts): 0.34
- Compliance Equivalent Volume (Vas): 6.44 ft.³
- Mechanical Compliance of Suspension (Cms): 0.18 mm/N
- BL Product (BL): 16.04 Tm
- Diaphragm Mass Inc. Airload (Mms): 52.9g
- Maximum Linear Excursion (Xmax): 1.9 mm
- Surface Area of Cone (Sd): 840 cm²
