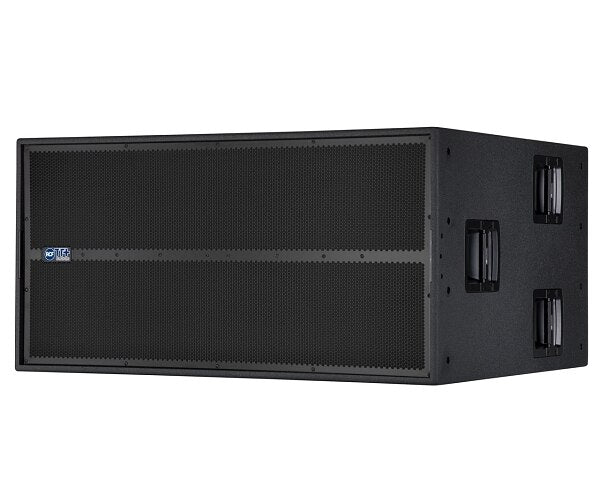

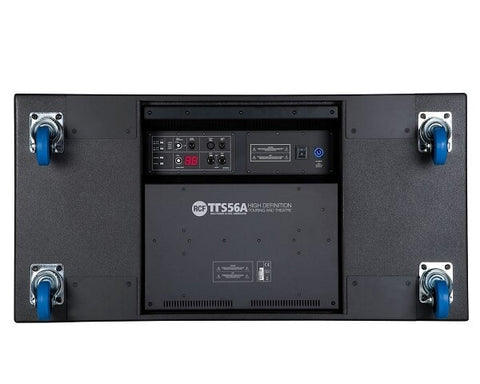

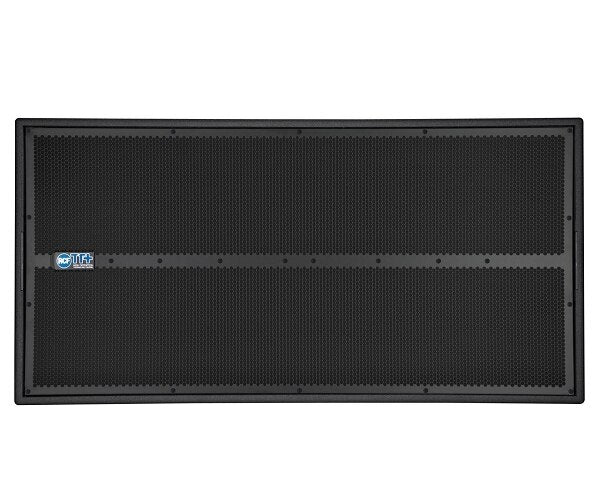

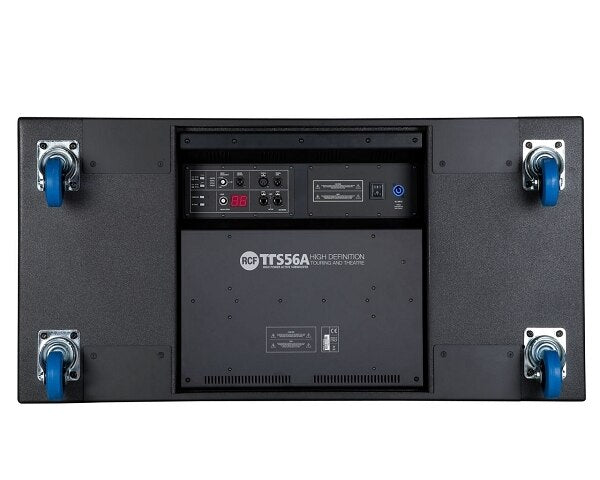

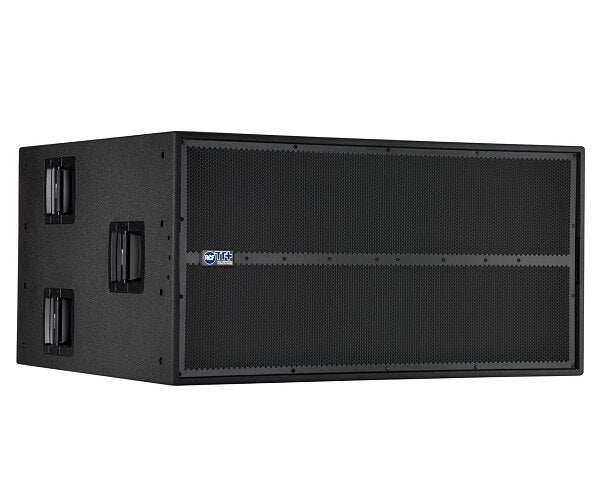

The TTS56-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement.
The new 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology. The integration of the 6800 W, two channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.
Features
- 2 x 3400 W digital amplifiers
- 2 x 21" high power neodymium woofers
- 96 kHz, 32 bit DSP processing
- Remote monitoring and control
- Time delay alignment
- Cardioid preset for groups
- Tour grade cabinet
- RDNet on board
- Maximum output per size on market
Specifications
- Frequency Response -3 dB: 30 Hz ÷ 100 Hz
- Max SPL: 145 dB
- Woofer: 2 x 21" neo, 4.5" voice coil
- Input connectors: XLR, Ethercon
- Output connectors: XLR, Ethercon
- Input sensitivity: -2 dBu / +10 dBu
- Protections: thermal, excurs., rms
- Limiter: soft limiter
- Controls: DSP controlled
- Total power: 6800 W RMS
- Low frequencies: 2 x 3400 W RMS
- Cooling: convection/forced
- Connections: powercon
- Cabinet Material: baltic birch plywood
- Hardware: 2 x steel bar for fork-lift transportation, 4 x 100 mm wheels
- Handles: 6 side
- Height: 590/23.2 mm/inch
- Width: 1170/46.0 mm/inch
- Depth: 988/38.9 mm/inch
- Net Weight: 115/235.5 kg/lbs
