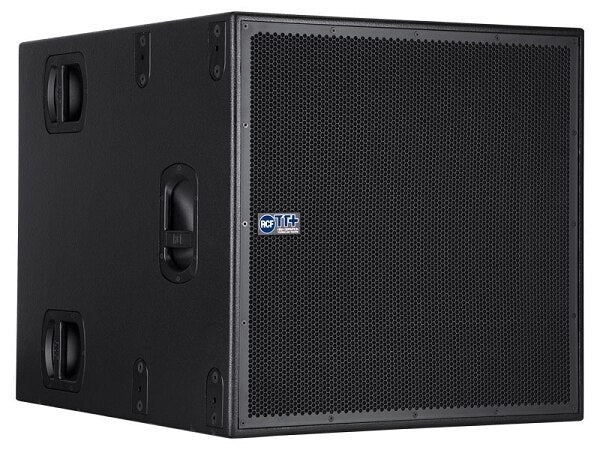

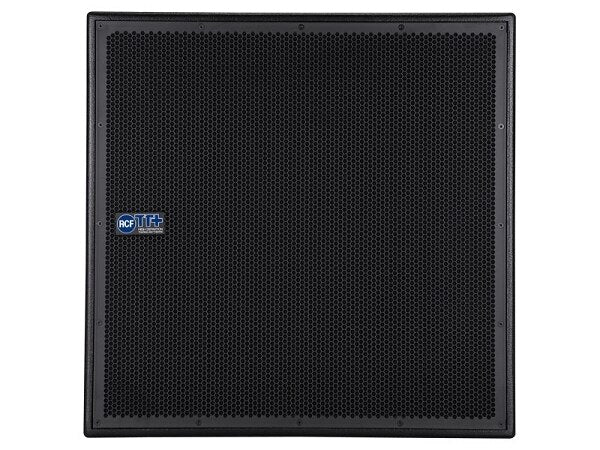

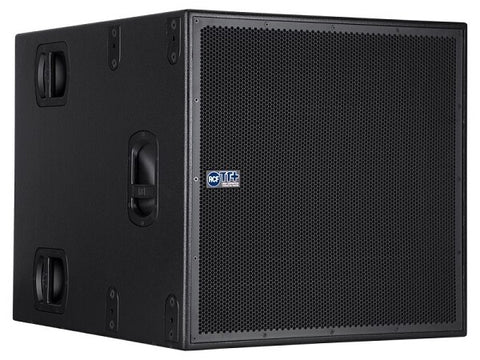

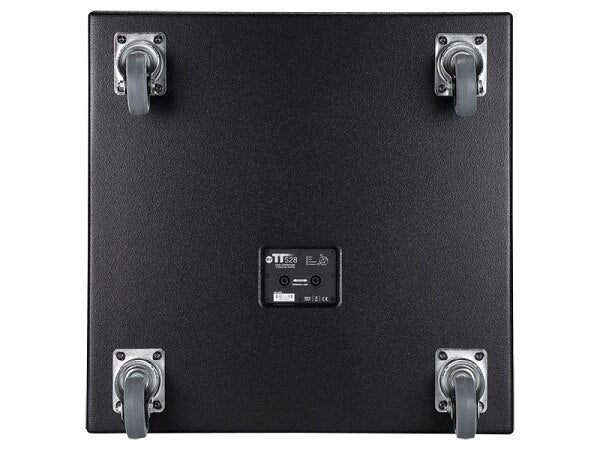

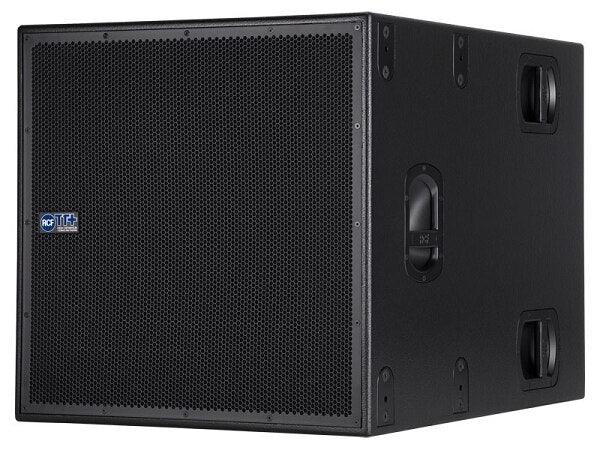

The TTS28 is a direct radiating, high output, large format subwoofer system proven in complementing high-efficiency, full range loudspeakers.
Driver mounting maximizes cone area and minimizes frontal area, providing acoustical performance and physical configuration well suited for creating large subwoofer arrays. New top quality neo drivers provide the highest output and best sonic performance possible for a given form factor.
Features
- Very compact size
- Maximum output per size available on market
- Minimum weight
- 2 x high power full neodymium 18" transducers
- 2000 Watt power handling
- Baltic birch cabinet
Specifications
- Frequency Response -10 dB: 30 Hz ÷ 110 Hz
- Max SPL @ 1m: 139 dB
- System Sensitivity: 100 dB
- Nominal Impedance: 4 Ω
- Power Handling: 2000 W
- Peak Power Handling: 8000 W
- Recommended Amplifier: 4000 Watt W
- Woofer: 18" woofer, 4" voice coil
- Nominal Impedance: 8 Ω
- Input Power Rating: 2400 W AES
- Sensitivity: 99 dB
- Input connector: Speakon NL4
- Output connector: Speakon NL4
- Cabinet Material: Baltic birch
- Hardware: Fittings ready
- Handles: 6 on side
- Pole Mount/Cap: Ready
- Colour: Black
- Height: 700 / 27.55 mm/inch
- Width: 700 / 27.55 mm/inch
- Depth: 920 / 36.22 mm/inch
- Net Weight: 73 / 160.93 kg/lbs
