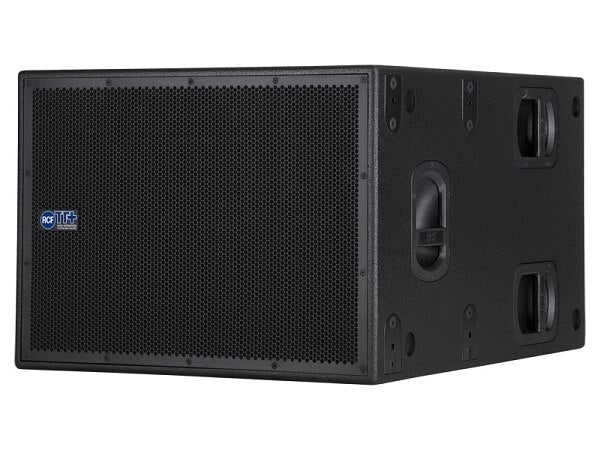

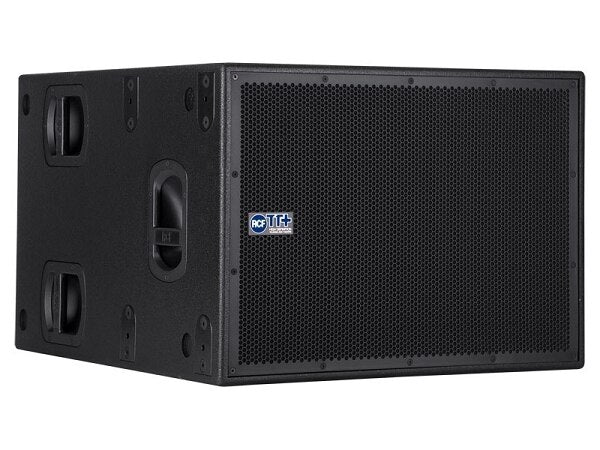

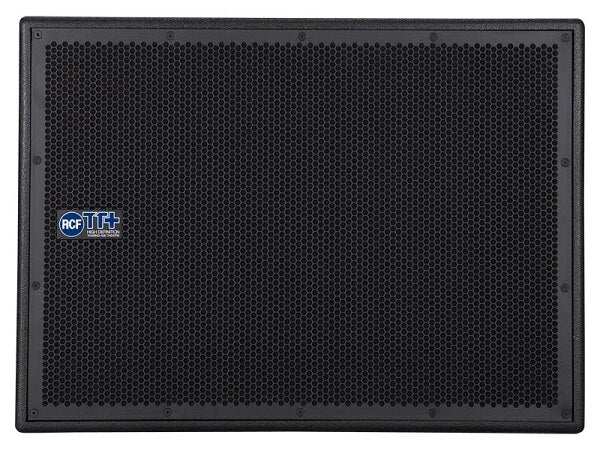

The TTS18 is a high performance sub-bass system designed for use with small to medium sound reinforcement systems, in both touring and install applications.
It features a 1200 W 18” drive unit with magnet structure and suspension engineered for maximum linear excursion. An optional top hat fitting allows mid-top cabinets to be mounted on the sub using an adjustable pole.
Features
- Very compact size
- Maximum output per size available on market
- Minimum weight
- High power full neodymium 18" transducer
- Baltic birch cabinet
Specifications
- Frequency Response -10 dB: 35 Hz ÷ 110 Hz
- Max SPL @ 1m: 100 dB
- System Sensitivity: 100 dB
- Nominal Impedance: 8 Ω
- Power Handling: 1200 W
- Peak Power Handling: 4800 W
- Recommended Amplifier: 2400 Watt W
- Woofer: 18" woofer, 4" voice coil
- Nominal Impedance: 8 Ω
- Input Power Rating: 1200 W AES
- Sensitivity: 99 dB

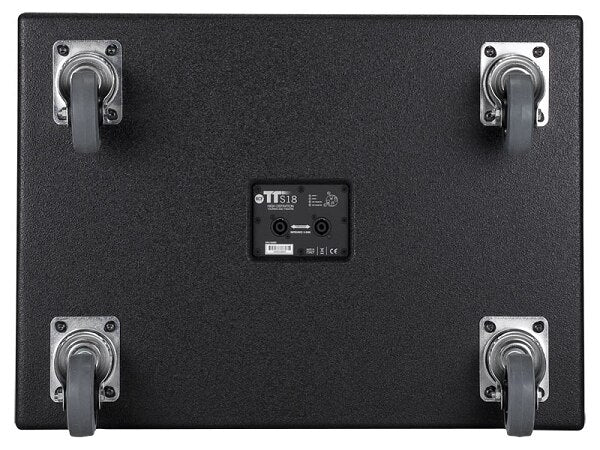

- Input connector: Speakon NL4
- Output connector: Speakon NL4
- Cabinet Material: Baltic birch
- Hardware: Fittings ready
- Handles: 6 on side
- Pole Mount/Cap: Ready
- Colour: Black
- Height: 520 / 20.47 mm/inch
- Width: 700 / 27.55 mm/inch
- Depth: 860 / 33.85 mm/inch
- Net Weight: 52 / 116.84 kg/lbs
