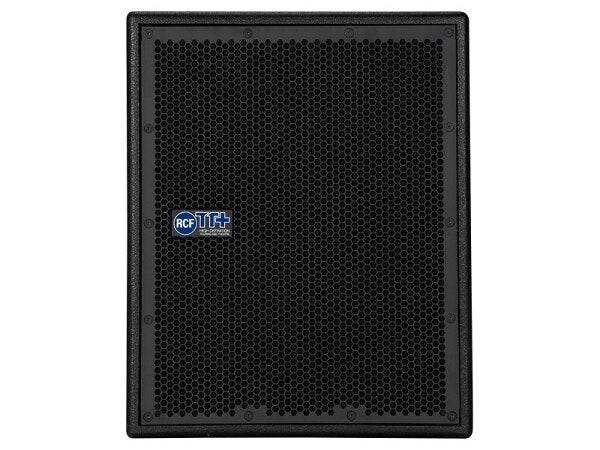

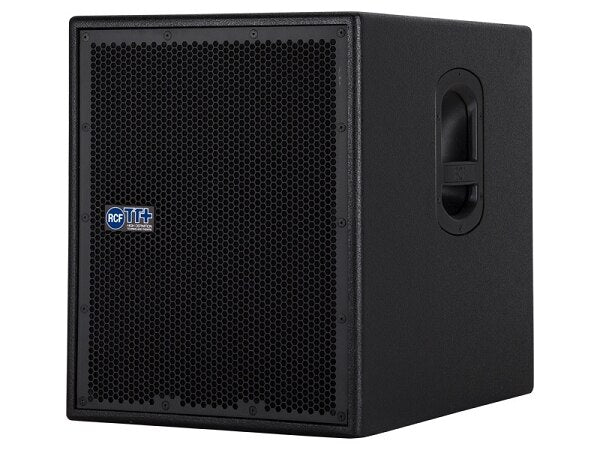

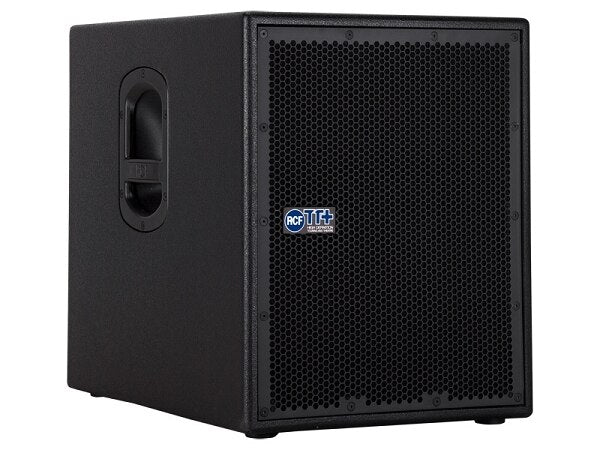

The TTS12-A is an extremely compact high power subwoofer designed to compliment the TT08-A Speaker System.
Based around a band pass design using a newly designed 4” voice coil vented neodymium 12” woofer the TTS12-A is powered by the onboard 1000 Class D power switching amplifier. The system can be wired with one subwoofer plus two satellite TT08-A in full stereo, or on a one to one ratio from the built in active crossover system.
Features
- Very compact size
- Maximum output per size available on the market
- Minimum weight
- High power full neodymium 12" transducer
- 1000 Watt switching amplifier

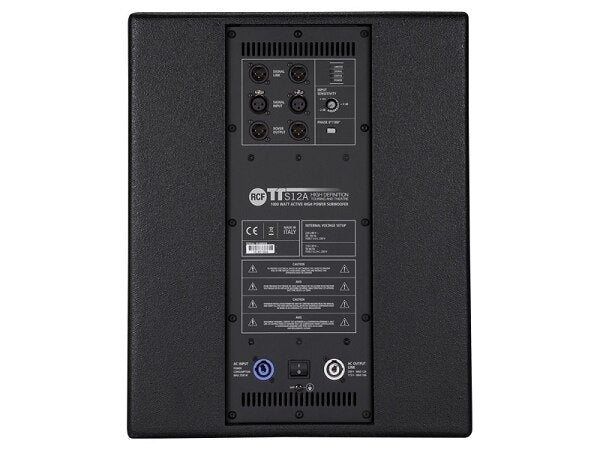

- XLR in/out, Powercon in/out
- Baltic birch cabinet
Specifications
- Frequency Response -3 dB: 45 Hz ÷ 120 Hz
- Max SPL: 131 dB
- Woofer: 12" neo, 100 mm voice coil
- Input signal: Bal / unbal
- Input connectors: Stereo XLR
- Output connectors: Stereo XLR
- Input sensitivity: - 2 dBu / +4 dBu
- Crossover frequencies: 110 Hz
- Protections: Thermal
- Limiter: Fast limiter
- Controls: Phase
- Total power: 1000 W RMS
- Low frequencies: D/1000 W RMS
- Cooling: Convection
- Connections: Powercon in/out
- Cabinet Material: Baltic birch
- Hardware: Pole mount
- Handles: 2 on side
- Pole Mount/Cap: Yes
- Colour: Black
- Height: 480 / 18.89 mm/inch
- Width: 390 / 15.35 mm/inch
- Depth: 530 / 20.86 mm/inch
- Net Weight: 28 / 61.73 kg/lbs
