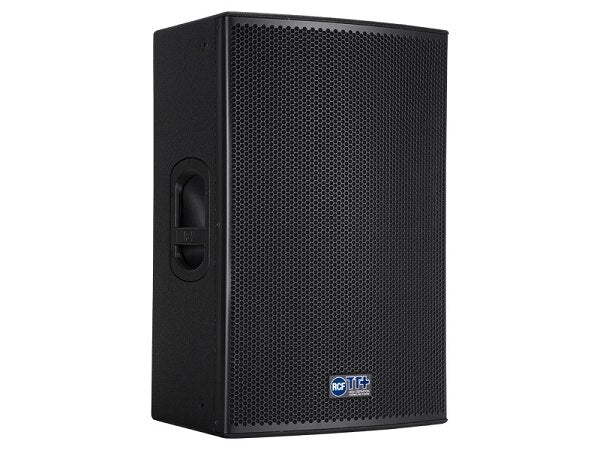

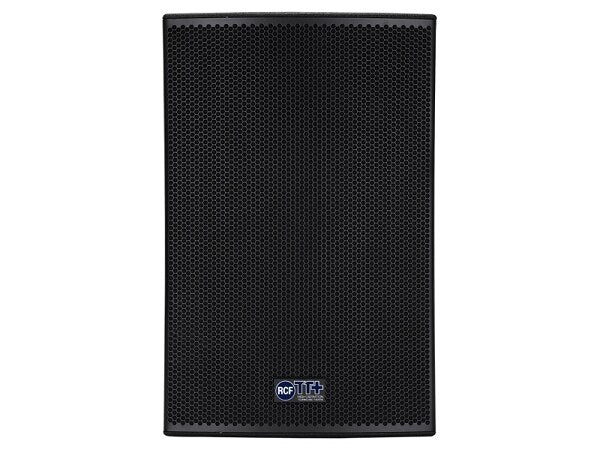

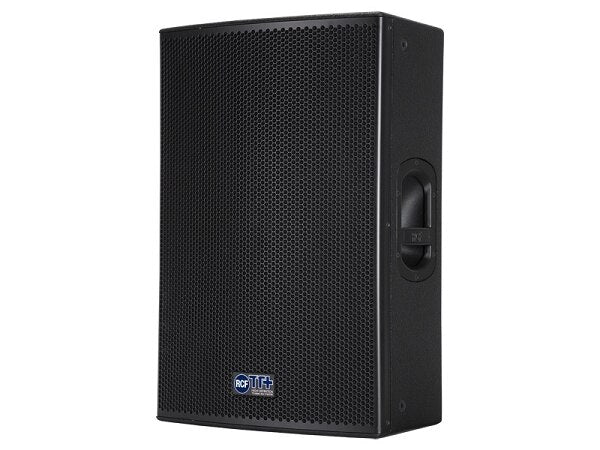

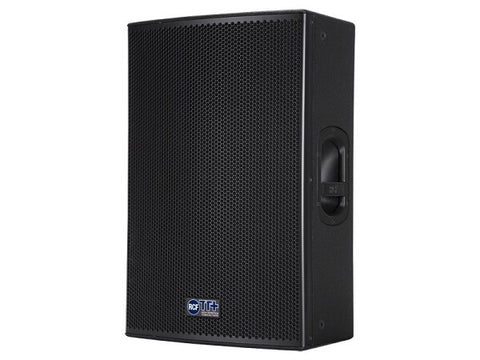

TT25 is a full range, extremely versatile two-way passive loudspeaker system offering substantial power and efficiency for a variety of professional applications: theatre and touring markets as well as fixed installations.
The high frequency section is a constant directivity CMD horn designed mathematically for Constant Matching Design in relation to the woofer system, loaded to a 1.5” neodymium compression driver with a 3” diaphragm assembly for smooth, controlled dispersion. The low frequency transducer is a 15” neodymium woofer with a 4” voice coil. The crossover is easily bypassed for bi-amp via a recessed changeover switch.
Features
- Very compact size
- Maximum output per size available on the market
- Minimum weight
- Wide, constant directivity, horizontal coverage angle
- High power neodymium transducers
- Dual function design: built in passive crossover or external bi-amp
- LICC (Low Impedance Compensated Crossover Network)
Specifications
- Frequency Response -10 dB: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 136 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle :40°
- System Sensitivity: 100 dB
- Nominal Impedance: 8 Ω
- Power Handling: 1000 W
- Peak Power Handling: 4000 W
- Recommended Amplifier: 2000 Watt W
- Protections: Dynamic mosfet
- Crossover frequencies: 1.3 Hz
- Compression Driver: 1.5" HFdriver, 3" voice coil
- Nominal Impedance: 8 Ω
- Input Power Rating: 100 W AES
- Sensitivity: 111 dB
- Woofer: 15" woofer, 4" voice coil
- Nominal Impedance: 8 Ω
- Input Power Rating: 800 W AES
- Sensitivity: 99 dB

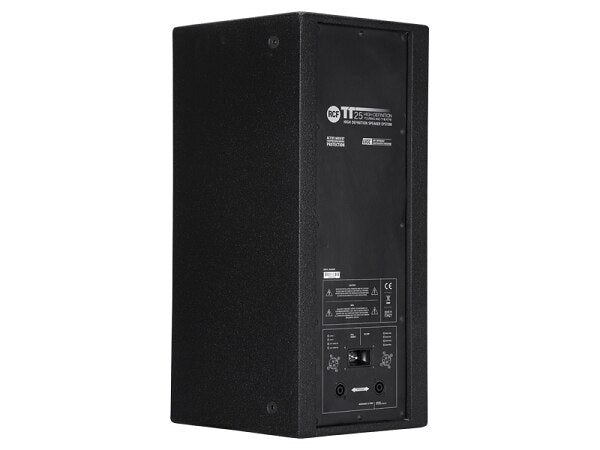

- Input connector: Speakon NL4
- Output connector: Speakon NL4
- Cabinet Material: Baltic birch
- Hardware: 6 x fly tracks
- Handles: 2 on side
- Pole Mount/Cap: Yes
- Colour: Black
- Height: 670 / 26.37 mm/inch
- Width: 430 / 16.92 mm/inch
- Depth: 450 / 17.71 mm/inch
- Net Weight: 33.2 / 73.19 kg/lbs
