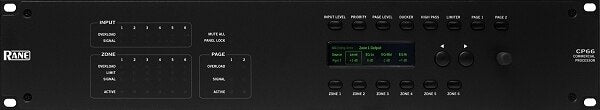

The Rane CP66 Commercial Zone Processor is an excellent audio distribution solution for a restaurant, retail store, or any other environment where a paging system is needed in addition to multiple input/output zones.
The CP66 has 6 mono output zones that can be linked or individually assigned from the 6 mono-summed inputs. Input 6 can be set as a gated Priority Input for use with a jukebox or notification system.
An additional analog input allows for the connection of a paging microphone, which can be separately enabled and leveled in each zone. The CP66 also supports Rane's PAGER2 Paging Station, which can be toggled on the fly to page any of the six zones individually or in combination. A dedicated, transformer-isolated Music on Hold output connects any of the inputs to your phone system.
In addition to such flexible routing, each zone is equipped with independent DSP controls for input level, page level, page-activated ducking, high pass filter, and a program limiter.
Rane's proprietary DR1 and DR3 remote controls can be connected to individual zones, or as a single Master Control. The remotes connect by RJ45-terminated CAT 5e Ethernet cables at lengths up to 1,000 feet (304.8 m).
The CP66 includes PC software for Windows that makes it easy to save zone names, DSP settings, and routing configurations.
Features
- 6 mono output zones
- 6 source inputs
- Flexible routing options
- Per zone DSP processing
- Dedicated Music on Hold output
- Per zone/linkable remote control inputs
- Security controls including front panel lockout
- Extra input for paging, with support for Rane PAGER2
- Connect to PC via USB to save your DSP, Zone, and Link settings
- An all-in-one paging station, audio processor, and music on hold system
Specifications
- Frequency Response: 20 Hz - 22,000 Hz +0/-3 dB

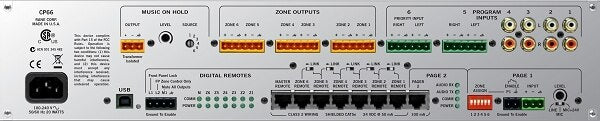

- Inputs
- Unbalanced mono-summed L/R RCA x4
- Euroblock mono-summed L/R x2
- Euroblock Mic/Line Paging Input x1
- RJ45 for Rane PAJER2 digital paging station x1
- Outputs
- Balanced mono Euroblock x2
- Music on Hold Euroblock x1
- Input Impedance
- RCA: 17.3k Ω
- Euroblock: 14.0k Ω
- Output Impedance: 100 Ω
- Maximum Input Level
- RCA: +14.3 dBu
- Euroblock: +20 dBu
- Maximum Output Level: +20 dBu
- Phantom Power: Page 1 Channel: 24 V
- THD + N: 0.06% +4 dBu, BW=22 kHz ±0.01%
- Remote Control
- RJ45 Zone Control x6
- RJ45 Master Control x1
- Requires CAT 5e Ethernet cable or better
- Cable length up to 1,000 feet (304.8 m)
- USB Output: x1
- Software Compatibility: Windows XP, Vista, 7
- Dimensions: 2U Rackmount, 8.5" depth (21.59 cm)
- Weight: 12 lbs (5.4 kg)
