Big Power Plus Maximum Portability!

The Impulse 12D 12" 2-Way Active Loudspeaker from Peavey provides professional-quality audio in a durable and versatile design that's ideal for PA and stage monitoring applications. The injection-molded polypropylene enclosure houses a 12" field-replaceable dual voice coil Scorpion neodymium woofer to deliver powerful bass with frequencies as low as 52Hz. The speaker has a woofer servo circuit that monitors back-EMF and controls the cone motion to ensure matching with the input signal. The result is low distortion and high power handling for rock-solid bass performance. The speaker also has an advanced 4.7" ribbon tweeter, which is based on the ribbons used in the Versarray line array speakers. An integrated waveguide provides a 90 x 30° coverage pattern for a wide sweet spot and sonic transparency.

The Impulse 12D uses Peavey's IPR power amplifier technology to provide plenty of power while providing high levels of efficiency and keeping weight to a minimum. The switch-mode power supply and high-speed Class-D topology yield extremely high efficiency while delivering a whopping 1200W of power. The speaker's input section features 2 input channels, each of which is mic/line switchable and is equipped with its own gain control. Channel 1 has XLR/TRS combo and phoenix inputs, while channel 2 has XLR/TRS combo and RCA inputs, providing wide compatibility with a variety of devices and systems. The output channel has XLR, 1/4" TRS, and phoenix connectors so you can daisy-chain multiple speakers or send the input signal to another source.

The speaker features a DynaQ section that offers advanced controls such as Bass Enhancer, optimized EQ, and Contour. There is also a module bay that allows you to expand the speaker's functionality by adding wireless I/O, delay/time adjustment, a mixer expander, Ethernet I/O, and more. The speaker also has DDT anti-clipping protection to prevent distortion. The front panel LED can be set to display power, signal, or be turned off to meet the needs of your application. A sleep mode can be enabled that will automatically shut off power to the speaker when a signal is no longer detected. The speaker has an integrated side handle and 2 integrated hand grips for convenient portability. A molded pole socket allows you to mount the speaker on a stand or on top of a subwoofer, while 3 flying point inserts allow suspended installation.

Features

1,200 watts (peak) from Peavey IPR power section
Auto Off
2 independently mixed inputs with level and mic/line switch
2-way, bi-amplified, active servo drive loudspeaker system
12" Black Widow loudspeaker with dual voice coil
Neodymium magnet design
Proprietary 120mm ribbon driver on a low-coloration waveguide
Combo XLR-1/4" and Phoenix connectors on channel 1
Combo XLR-1/4" and RCA connectors on channel 2
XLR, 1/4" TRS and Phoenix outputs on Line Out
Woofer Servo technology
Exclusive DDT anti-clipping speaker protection
Bass Enhancement circuit
Automatic equal loudness compensation
Mounting bay for optional input function modules
Rugged polypropylene molded enclosure
Tilt-back design for monitor use
Pole mount molded-in
Top, bottom and side flying point inserts
LED control switch: Power/Signal/Off

Versatile Design

The unique tilt-back cabinet design allows you to use the speaker upright for PA applications, or horizontally for personal stage monitoring

Durable Enclosure

The enclosure is made from injection-molded polypropylene for lasting durability and day-to-day road use

Field-Replaceable Servo-Controlled Woofer

The 12" field-replaceable dual voice coil Scorpion neodymium woofer delivers powerful bass with frequencies as low as 52Hz. The speaker has a woofer servo circuit that monitors back-EMF and controls the cone motion to ensure matching with the input signal. The result is low distortion and high power handling for rock-solid bass performance

Ribbon Tweeter

The advanced 4.7" ribbon tweeter is based on the ribbons used in the Versarray line array speakers. An integrated waveguide provides a 90 x 30° coverage pattern for a wide sweet spot and sonic transparency

IPR Class-D Power Amplifier

The Impulse 12D uses Peavey's IPR power amplifier technology to provide plenty of power while providing high levels of efficiency and keeping weight to a minimum. The switch-mode power supply and high-speed Class-D topology yield extremely high efficiency while delivering a whopping 1200W of power

2 Independently-Mixed Input Channels

The speaker's input section features 2 input channels, each of which is mic/line switchable and is equipped with its own gain control. Channel 1 has XLR/TRS combo and phoenix inputs, while channel 2 has XLR/TRS combo and RCA inputs, providing wide compatibility with a variety of devices and systems

Output Connectivity

The output channel has XLR, 1/4" TRS, and phoenix connectors so you can daisy-chain multiple speakers or send the input signal to another source

DynaQ Control, Module Expansion, and DDT

The speaker features a DynaQ section that offers advanced controls such as Bass Enhancer, which provides an overall loudness boost. A Music/Speech switch provides optimized EQ settings for different audio types. A Contour control is specifically configured for program music

Module Expansion and DDT

There is a module bay that allows you to expand the speaker's functionality by adding wireless I/O, delay/time adjustment, a mixer expander, Ethernet I/O, and more. The speaker also has DDT anti-clipping protection to prevent distortion

Ground-Lift Switch

A ground-lift switch is provided to reduce hum caused by ground loops

Selectable LED Functionality

The front panel LED can be set to display power, signal, or be turned off to meet the needs of your application

Sleep Mode

A sleep mode can be enabled that will automatically shut off power to the speaker when a signal is no longer detected

Easy Transportation

The speaker has an integrated side handle and 2 integrated hand grips for convenient portability

Mounting Options

A molded pole socket allows you to mount the speaker on a stand or on top of a subwoofer, while 3 flying point inserts (top, bottom, and side) allow suspended installation

Specifications

Type: Active, 2-Way, Bi-Amplified Servo Drive Loudspeaker
Output Power: 1200W
Woofer: 12" (305mm) Field-Replaceable Dual Voice Coil Neodymium Woofer
Tweeter: 4.7" (120mm) Ribbon Tweeter
Dispersion: 90 x 30° (HxV)
Connectors

1 x AC Power Input
2 x XLR/TRS Combo Inputs
1 x Phoenix Input
1 x RCA Input
1 x XLR Output
1 x 1/4" TRS Output
1 x Phoenix Output

Dimensions (WxHxD): 18.5 x 27.63 x 18.5" (470 x 702 x 470mm) (Packaged Dimensions)
Weight: 39.68 lbs (18kg)

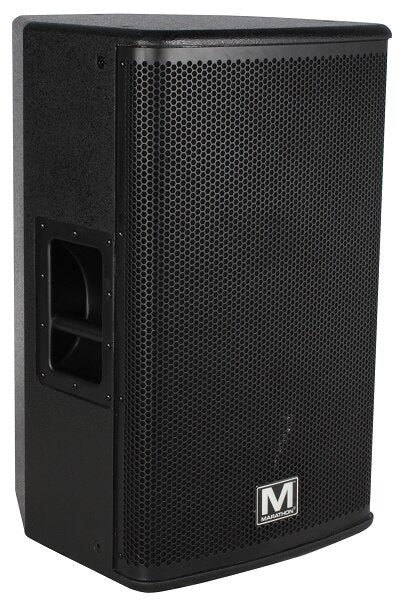

Marathon KVX-15 Powered Full Range Speaker
