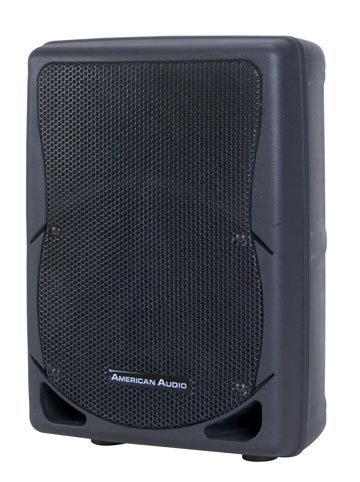

The XSP-8A from American Audio is a professional 2-way loudspeaker ideal for performances, lectures, and more. The unit has an 8" woofer and a high-frequency transducer to deliver crisp, clear audio with a wide frequency response. Dual internal amplifiers with a total power of 100W provide strong audio with low distortion, while a time-aligned crossover ensures that each driver section performs to its maximum potential. Vented bass ports help to extend low frequency response.

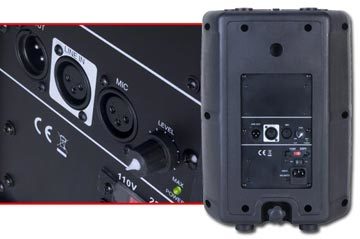

The rear panel features mic and line level XLR inputs, as well as a line level XLR output for connecting additional speakers. There is also a rotary volume control for setting the speaker's output level. The cabinet has a rugged ABS nylon fiber construction with a full grille for excellent durability on the road. An integrated handle provides easy transportation, while a pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling. The speaker has a selectable operating voltage for international use.
Features
- The speaker has a 2-way design with an 8" woofer and a high-frequency transducer to deliver crisp, clear audio with a wide frequency response
- Dual internal amplifiers with a total power of 100W provide strong audio with low distortion
- Time-aligned crossover ensures that each driver section performs to its maximum potential
- Vented bass ports help to extend low frequency response
- The rear panel features mic and line level XLR inputs, as well as a line level XLR output for connecting additional speakers
- Rotary volume control lets you set the speaker's output level
- Rugged ABS nylon fiber construction with a full grille for excellent durability on the road
- Integrated handle for easy transportation
- A pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling
- Selectable operating voltage for international use
Specifications
- Active or Passive: Active
- Frequency Response: 20Hz - 20kHz
- Maximum Amplifier Power: 100W
- Maximum Sound Pressure Level (SPL): Not Specified by Manufacturer
- Nominal Sensitivity
- Mic: -40dB (10mV)
- Line: -20dB (100mV)
- Output: 97.4 ±2dB/m/W
- Impedance: Not Specified by Manufacturer
- Crossover: 3.3kHz
- Low Frequency Driver: 8" (203mm) Woofer
- High Frequency Driver: High Frequency Transducer
- Dispersion: 90 x 50° (HXV)
- Enclosure Material: ABS Nylon Fiber Cabinet with Full Metal Grille
- Connectors
- 1 x XLR Mic Input
- 1 x XLR Line Input
- 1 x XLR Line Output
- 1 x Power Input
- Controls
- 1 x Power Switch
- 1 x Level Control Knob
- 1 x Voltage Selector Switch
- Power
- 115-230VAC, 50/60Hz, Switchable
- Consumption: 12W
- Dimensions (LxWxH): 11.5 x 9 x 16.5" (290 x 230 x 420mm)
- Weight: 18 lbs (9kg)
