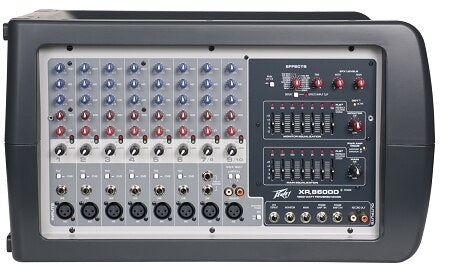

Powered Mixer with Feedback Locating System! The XR 8600D 1200W Powered Mixer with Digital Effects from Peavey offers high-quality audio and versatile features in a compact design. It has 8 mic inputs, each with its own low-noise preamp and 48V phantom power to support condenser microphones. There are also 10 line inputs so you can connect other audio devices. Each channel has a 3-band EQ, a monitor send, and a signal/clipping indicator. There is a 25dB pad on channels 1-6, and a mute switch on channels 1-8. The mixer has a pair of internal power amplifiers that deliver 600W per channel for a strong, clear performance with minimal distortion. The mixer allows you to switch between dual main or main/monitor power amp modes for excellent versatility. There are dedicated 7-band main/monitor EQs with Peavey's Feedback Locating System (FLS) technology to shape your audio and reduce feedback. A DSP-based effects processor delivers 16 presets with parameter control so you can enhance your sound. DDT speaker protection with an activity LED protects your speakers from damage caused by hot signals or spikes. FeaturesThere are 8 mic inputs, each with its own low-noise preamp and 48V phantom power to support condenser microphones. There are also 10 line inputs so you can connect other audio devicesEach channel has a 3-band EQ, a monitor send, and a signal/clipping indicator. There is a 25dB pad on channels 1-6, and a mute switch on channels 1-8A pair of internal power amplifiers deliver 600W per channel for a strong, clear performance with minimal distortionThe mixer allows you to switch between dual main or main/monitor power amp modes for excellent versatilityThere are dedicated 7-band main/monitor EQs with Peavey's Feedback Locating System (FLS) technology to shape your audio and reduce feedbackA DSP-based effects processor delivers 16 presets with parameter control so you can enhance your soundDDT speaker protection with an activity LED protects your speakers from damage caused by hot signals or spikes.
Specifications
- Input Impedance Lo-Z Mic: 2k ohms
- Line: 22k ohms
- Tape: 20k ohms
- Amplifier: 8.25k ohms
- Input Gain Lo-Z Mic: 50 dB max without pad, 25 dB max with pad
- Line: 30 dB max without pad, 25 dB max with pad
- Tape: 30 dB max
- Input Level Lo-Z Mic: -9 to -34 dBu min, -29 to -4 dBu nominal, -11 to +14 dBu max
- Line: -27 to -2 dBu min, +2 to +27 dBu nominal, +21 to +26 dBu max
- Tape: -26 dBu min, +4 dBu nominal, +21 dBu max
- InputsLo-Z Mic: XLR (pin 1 ground, pin 2 positive, pin 3 negative), balanced
- Line: 1/4" TRS (tip positive, ring negative, sleeve ground), balanced
- Tape: RCA, unbalanced
- Output Impedance Main: 600 ohms
- Monitor: 600 ohmsTape: 10k ohms
- Output Level Main: +4 dBu nominal, +21 dBu max
- Monitor: +4 dBu nominal, +21 dBu max
- Tape: -10 dBu nominal, +10 dBu max
- Outputs Main: 1/4" phono TS (tip positive, sleeve ground), unbalanced
- Monitor: 1/4" phono TS (tip positive, sleeve ground), unbalanced
- Tape: RCA, unbalanced
- Gain Mic In to Main Out: 60 dB (max gain)Line In to Main Out: 30 dB (max gain)
- Frequency Response Mic In to Main Out: 20 Hz - 20 kHz (+0/-1 dB)
- Line In to Main Out: 20 Hz - 20 kHz (+0/-1 dB)
- To Power Amp Out: 40 Hz - 20 kHz (+0/-1 dB
- )Amplifier: 20 Hz - 20 kHz +0/-10 dB @ rated power
- Total Harmonic Distortion Mic In to Main/Mon Out: < 0.01%Line In to Main/Mon Out: < 0.01%
- Typical: < 0.005%Amp: < 0.01% @ rated output @ 1 kHz, < 0.5% for 6 dB overload, < 1% for 20 dB overload
- Graphic EQ Filter Frequencies: 80, 250, 500, 1k, 2k, 4, 10k
- Max Boost and Cut: +12 dB boost, -12 dB cut
- Hum and Noise Main: -102 dB (all controls down), -90 dB (1 channel nominal, master nominal)
- Monitor: -98 dB (1 channel nominal, master nominal), -90 dB (master nominal, channels nominal, mic inputs @ 150 ohms)Amp: 95 dB below rated power level (500 W)S/N Ratio: > 90dB below rated power output, mic/line to speaker out
- EIN: -122 dBu (input terminated to 150 ohms)
- Crosstalk > 80 dB (adjacent input channels, 20 Hz - 20 kHz)> 70 dB (left to right outputs, 20 Hz - 20 kHz)CMRR50 dB minimum (20 Hz - 20 kHz)
- 60 dB typical @ 1 kHz
- Amplifier Power 1200 D module with DDT600 W program into 4 ohms, both channels driven
- 500 W RMS into 4 ohms, both channels driven
- 360 W program into 8 ohms, both channels driven
- 300 W RMS into 8 ohms, both channels driven
- Dynamic Range: > 26 dB
- Damping Factor: > 100 @ 1 kHz, 4 ohms
- Input Sensitivity: 2.5 VRMS for 500 W @ 4 ohms
- Power Requirements Dom: 120 VAC, 60 Hz, 275 W nominal
- Exp: 220-240 VAC, 50/60 Hz, 275 W nominal
- Dimensions (WxHxD): 21 x 11.75 x 12.38" (533 x 298 x 314 mm)
- Weight: 23.8 lbs (10.8 kg)
