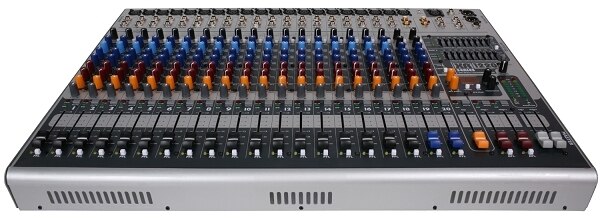

A 20-channel, feature-packed powered mixer that delivers versatility and control.
The XR 1220 from Peavey is a console-style powered-mixer that's ideal for any situation where an experienced sound person may not be present at all times. The XR 1220 features a number of automated functions that run in the background which effortlessly help you get the best sound possible.
The XR 1220 features a built-in patented feedback elimination system called the Feedback Ferret, which digitally locates and suppresses frequencies that threaten to disrupt your audio. The feedback gets cut out of the spectrum before you ever hear it, and the filtered frequencies get released when the system detects that feedback is no longer a threat.
If that wasn't enough, the XR 1220 also features an automated real-time analyzer that adjusts the curve of the system EQ. It automatically tunes the system the moment you plug in a microphone to achieve optimum sound quality.
There is also a built-in digital effects section with reverbs, delays, compression, and chorus. All 20 channels feature balanced XLR and 1/4" inputs. There are two monitor sends, a dedicated effects return fader, 4-band EQs on every channel, and dual 9-band graphic EQs.
The internal lightweight amplifiers are 600 watts each, and can be bridged at 1200 watts. There are 80Hz low-cut switches on every channel, and a Neutrik Speakon combo output for each amplifier. The XR 1220 is the perfect powered-mixer for any situation that demands an easy-to-operate yet powerful PA system.
Features
- Two lightweight 600 watt amplifiers that can be bridged for a total of 1200 watts
- Includes a digital feedback elimination system
- Built-in digital effects with foot switch control option
- Dual 9-band graphic EQ, 4-band EQ on every channel input
- Multiple amplifier modes, including one with an active crossover for a subwoofer
Specifications
- Mic/Line Inputs: 20
- Stereo Line Inputs: 2
- AUX Sends: 2 Monitor sends
- Inserts: Inserts on all channels

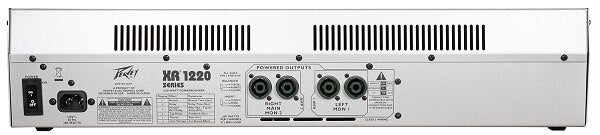

- 2 Trk Master I/O: XLR outputs for left and right
- Monitor Outputs: 2
- EQ Section: 4-band EQ on every channel, dual 9-band graphic EQ
- Effects: Built-in digital effects with reverbs, delays, and chorus with preset storage
- Solo/Mute: PFL and Mute buttons on every channel
- Channel Level Control: 60mm faders
- Trim/Gain Control: 20 mic channels with preamps
- High-Pass Filter: 80Hz filter on every channel
- Phantom Power: +48V button on every channel
- Metering
- Multi-segment LED meter on master
- Signal and peak LED on every channel
- Frequency Response: Not specified by manufacturer
- Dimensions: Not specified by manufacturer
- Weight: 25 lbs (11.3 kg)
