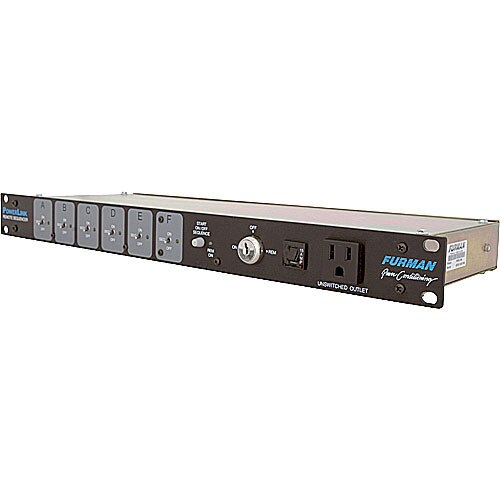

The Furman PowerLink Remote AC Power Sequencer allows you to trigger 6 power control devices in a sequenced fashion. All outputs are electrically isolated, normally closed or normally open low-power relay contacts. Each control output has a front-panel status indicator, and has a 3-position switch allowing it to be part of the sequence, or to be switched on or off independent of the sequence. The delay interval between the turn-on or turn-off of each device and the next in sequence is user-adjustable via an internal trimpot.
A PowerLink is intended to work with a group of relay controlled power outlets such as the Furman MiniPort-15 and MiniPort-20, to create a very flexible power control system that can expand to handle as many circuits as needed.

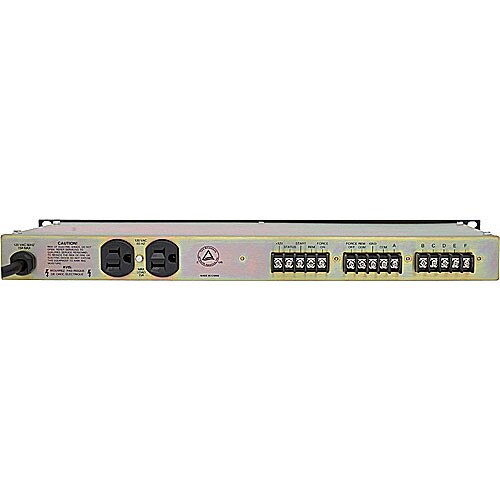

The outputs of the PowerLink are low power relay contacts, accessible through rear-panel screw terminal strips. Outputs may be configured to be normally closed or normally open by internal jumpers. All input and output commons are electrically isolated to avoid the creation of ground loops.
Features
- Compact single rack space package
- Additional 3 unswitched AC outlets; 2 on the rear, 1 one the front
- Can be linked up with additional PowerLink units, providing complete power sequencing control for even the largest systems
- Delay interval between sequence steps is adjustable from 0.2 to 10 seconds, via an internal trimpot
- Front panel key switch for security
Specifications
- Power Input: 120 VAC, 50/60 Hz
- Remote Control Input: 5 VDC/6-130 VAC
- Remote Output: 130 VAC max from relay common to chassis
- Surge Energy Rating: N/A
- Audible Alarm: N/A
- Compatibility: MiniPorts, or other sequencers
- Environmental Requirements: Interior
- Agency Certifications: UL/CSA listed
- Dimensions: 1.75 x 19 x 7.1" (4.4 x 48.3 x 18 cm)
- Weight: 5.5 lbs (2.5 kg)
