Protect your valuable gear while monitoring power conditions.
The PL-PRO DMC Power Conditioner from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge suppressors.
Features
- Extreme Voltage Shutdown
- Voltmeter / Ammeter
- 20A Rating
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
Voltmeter / Ammeter
Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw
Pull-out Lights
Dual smooth track retractable LED lights illuminate equipment in your rack
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination
Wall Wart Spacing
Three widely spaced outlets accommodate bulky AC power transformers
20A Rating
20A rating featuring a high inrush magnetic circuit breaker for added protection
Nine Total Outlets

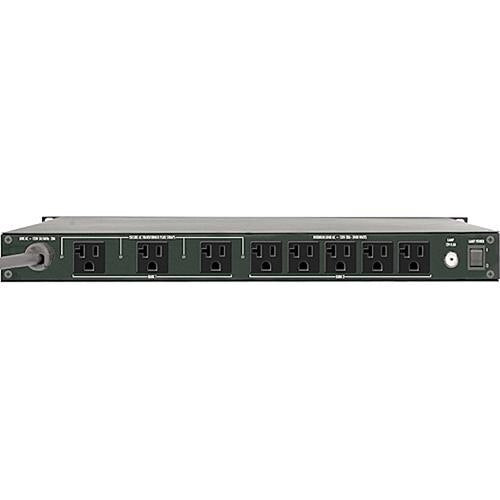

Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
Specifications
- Maximum Current: 20A@124V
- Output: 90 to 139VAC
- Surge Energy Rating: 188VAC peak @ 3,000A
- Dimensions: 19 x 10.5 x 1.75" (482.6 x 266.7 x 44.45mm)
- Weight: 12 lbs (5.44kg)
- Equipment Protection: Line to neutral, zero ground leakage
