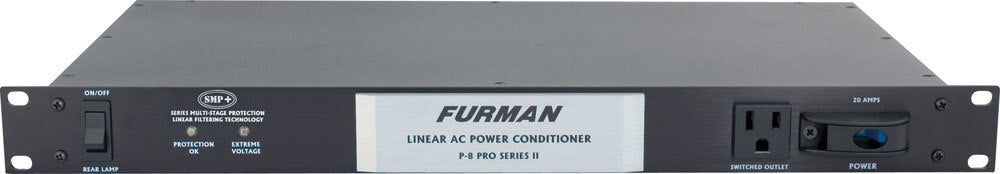

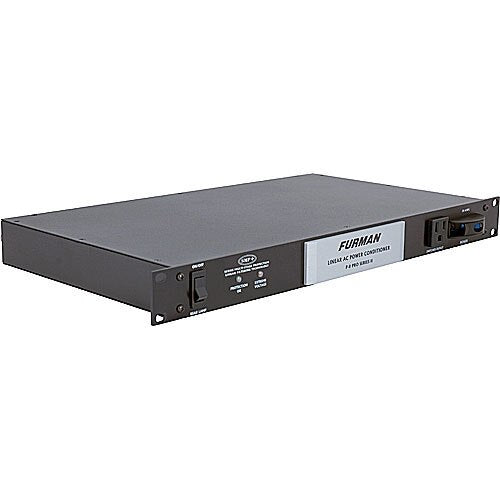

Furman P-8 Pro II Advanced Power Conditioner



The Furman P-8 Pro Series II 8-Outlet 20 Amp Power Conditioner offers advanced and comprehensive transient voltage surge suppression. Furman's proprietary Linear Filtering Technology (LiFT) suppresses AC noise evenly, assuring maximum performance from your system. SMP circuitry offers the highest degree of protection against electrical surges and spikes, and does this without sacrificing itself or any of its components. In addition, the Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 140 volts or higher, protecting itself and connected equipment from the extreme voltage.





• Eight rear panel outlets and one front panel outlet.
• 20 amp rating, with high-inrush-capable magnetic circuit breaker.
• Series Multi-Stage Protection (SMP) with a high current TVZ-MOV provides the highest level of AC surge suppression.
• Automatic Extreme Voltage Shutdown (EVS) guards your valuable equipment from dangerous wiring faults.
• Zero ground contamination circuitry assures the delivery of pure AC power thus protecting critical audio/video components.
• The master switch controls all outlets and glows red when the power is on.
• Steel chassis, .125" brushed and black anodized aluminum front panel, glass epoxy printed circuit boards

• Input: 1 x 10' Power Cord with Nema 5-20P (20 amp) 3-prong plug

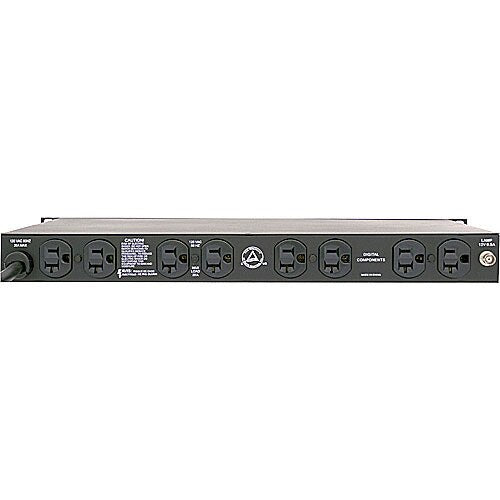

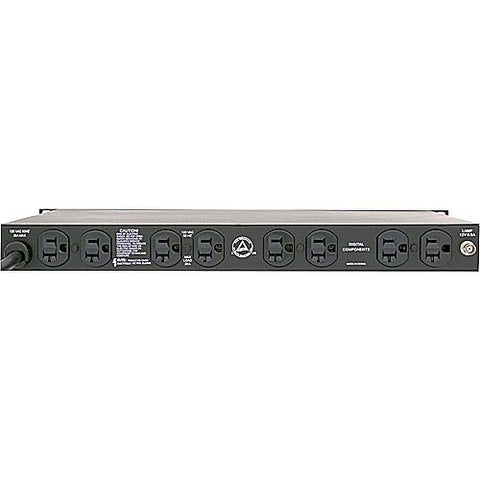

• Output: 8 x 3-prong AC rear power outlets, plus 1x AC front panel outlet
• Surge Energy Rating: 6,500A, 188V peak clamping @ 3000V (133 VAC RMS)
• Battery: N/A
• Typical Backup Runtime: N/A
• Audible Alarm: No
• Agency Certifications: CE, NRTL-C, UL-1449
• Compatibility: 19" Rack mountable
• Environmental Requirements: Not Specified by Manufacturer
• Dimensions: 19 x 1.75 x 10.5" (48.3 x 4.5 x 26.7 cm) WxHxD
• Weight: 11 lb (5 kg)
• Equipment Protection: None
• Additional Info
• AC Noise Attenuation: 10 dB @ 10 kHz, 100dB @ 10 MHz
• Extreme Voltage Shutdown (EVS): >140 VAC
• Rated Input Current: 20A
• Input Breaker Capacity: 20A
