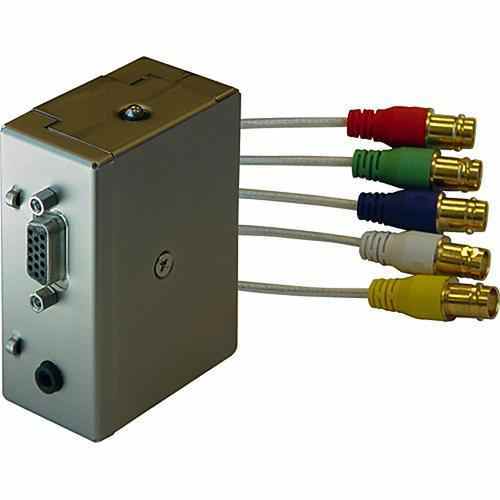

The Furman MAX In-Wall VGA Module inserts into any MIW-POWER unit to protect against surges on both signal and power lines; thus, eliminating potential grounding problems by creating an Isolated Ground Reference for the remote equipment. The MIW-VGA accepts RGBHV, component video, and/or stereo audio signal lines running between source components and remote equipment.
Devices connect to a 15 pin, high-density D-sub connector on the face of the module. A 3.5mm stereo mini-jack is provided for 12V triggering and IR signal transmission. Cabling inside the wall connects to positive-lock BNC connectors. Protect multiple signal lines with one module and the installation flexibility the MIW-VGA delivers.
Features
- 3.5 mm stereo mini-jack for 12V triggering and IR signal transmission
Specifications
- Connectors
- Front: D-Sub, 3.5mm Stereo
- Rear: BNC x 5
