Cost-effective, Compact AC Power Distribution!
The Furman ACD-100 Power Distro is a compact rack mount power distribution system that is ideal for touring PA systems, touring musical and theatrical acts, mobile recording facilities, on location film and video shoots, or any situation where AC power must be distributed to multiple circuits and a hard wired, built in system is missing, inadequate, or impractical.

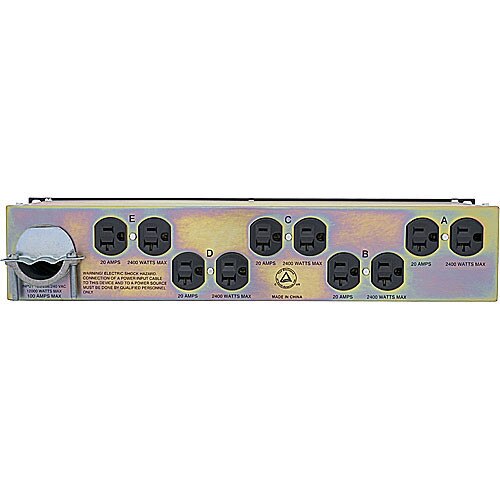

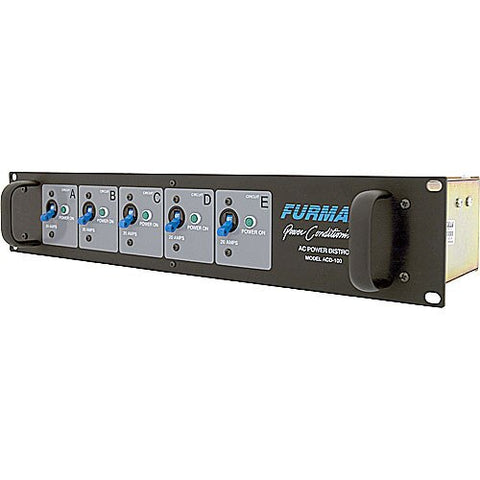

The ACD-100 can handle up to 100 amps of incoming power, distributing it to five 20 amp, 120V circuits. Each circuit has a neon status indicator that lights up when its breaker is turned on, and a 20 amp duplex outlet on the rear panel.
Features
- High inrush magnetic type breakers are designed specifically for critical data processing and broadcast applications where nuisance tripping cannot be allowed. They have a pulse tolerance of 10 times the rated current, or 200 amperes.
- Breakers can be reset as soon as the overload is corrected, there is no cool down delay time required.
- Breakers can be used as on off switches for the five circuits.
- The ACD-100's design incorporates four oversized busses, allowing wiring for 120V or 240V single phase, or 208V three phase power. A strain relief clamp is provided that can accommodate a cable or wire bundle up to 1.5 inches in diameter. Cable termination is a simple process of breaking out and stripping the individual conductors and connecting them with set screws, and then tightening the strain relief clamp.
Specifications
- Input: Either 120V single phase, 240V single phase, or 208V 3-phase
- Output: 10x 3-Prong NEMA 5-20R outlets (5 identical 20 amp, 120V circuits)
- Surge Energy Rating: 80 joules per circuit, 6,500 amp maximum surge current
- Audible Alarm: No
- Compatibility: 19" Rack mount
- Environmental Requirements: Not Specified by Manufacturer
- Agency Certifications: UL/CSA listed
- Dimensions: 3.5 x 19 x 8" (8.9 x 48.3 x 20.3 cm) HxWxD
- Weight: 12 lb (5.4 kg)
- Equipment Protection: None
- Additional Info
- Overload vs. Trip Time: 100% overload: No trip. 125% overload: 0.7 -12 sec. 200% overload: 0.1-3 sec.
- Spike Protection Mode: Line to neutral on each circuit
- Spike Clamping Voltage: TVSS rating 400V peak, L-N, N-G, L-G
