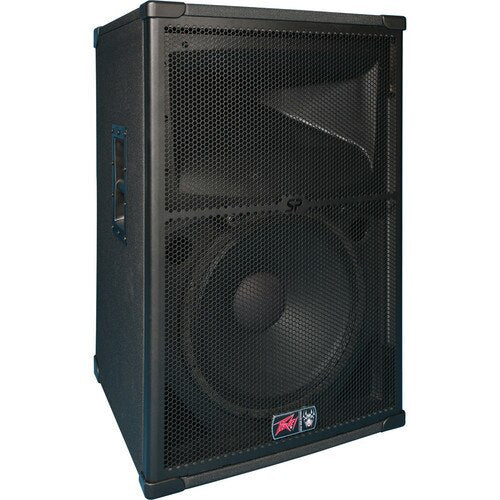

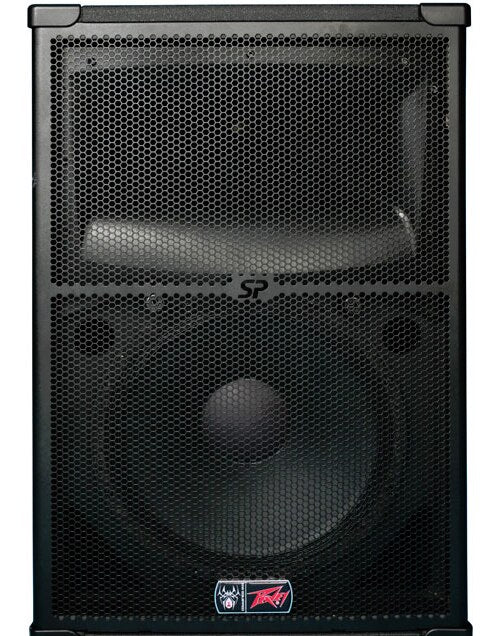

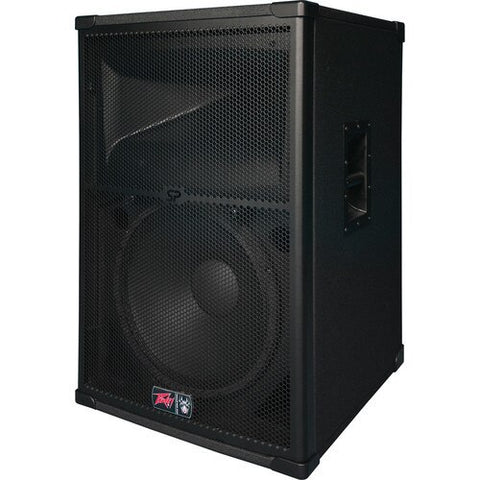

Peavey SP 2 15" 2-Way Passive Loudspeaker



The SP2 15" 2-Way Passive Loudspeaker from Peavey is a professional-quality loudspeaker, ideal for PA and sound reinforcement applications. The speaker has a 15" BWX Black Widow Kevlar-impregnated woofer with a 4" voice coil, as well as an RX22 titanium compression tweeter with ferrofluid cooling and Sound Guard III tweeter protection. These drivers work together to deliver clear, natural audio with a wide frequency response. The speaker uses patented Asymmetrical Quadratic Throat Waveguide technology to direct sound to your audience, not over their heads.



The speaker also features a patented Radialinear Planar Phase Correction System to ensure proper phase alignment for the best sonic results. The rear panel offers a pair of 1/4" phone jacks and a 4-pin Speakon jack for full-range audio input. There is also a 4-pin Speakon bi-amp input for connecting an external amplifier. The speaker has a 1000W program (2000W peak) power handling capability to deliver a strong performance with low distortion.



The cabinet has a trapezoidal design to allow versatile placement. It has a durable Hammertex covering to withstand the rigors of life on the road. The metal grille protects the drivers, while integrated handles provide convenient transportation. A standard 35mm pole socket allows mounting on a stand or on top of a subwoofer.



• Ideal for PA and sound reinforcement applications
• The 15" BWX Black Widow Kevlar-impregnated woofer has a 4" voice coil and a field-replaceable basket. It delivers bass frequencies as low as 54Hz
• The RX22 titanium compression tweeter has ferrofluid cooling and Sound Guard III tweeter protection. It can provide treble reproduction at frequencies up to 17kHz
• Patented Asymmetrical Quadratic Throat Waveguide technology aims patterns 10° upwards and 30° downwards to direct sound to your audience, not over their heads
• The patented Radialinear Planar Phase Correction System ensures proper phase alignment for the best sonic results

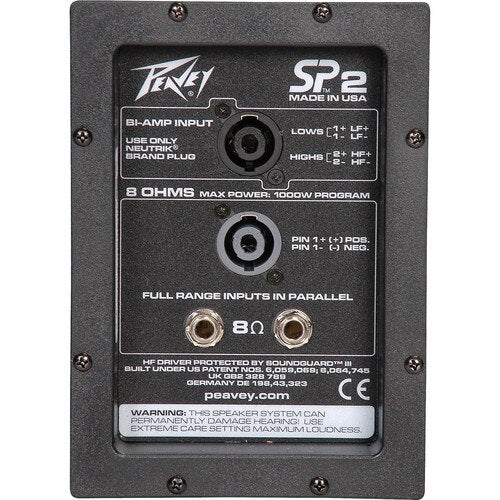

• The rear panel offers a pair of 1/4" phone jacks and a 4-pin Speakon jack for full-range audio input for versatile connectivity
• There is a 4-pin Speakon bi-amp input for connecting an external amplifier. The speaker has a 1000W program (2000W peak) power handling capability to deliver a strong performance with low distortion
• The cabinet has a trapezoidal design to allow versatile placement
• The Hammertex covering and metal grille provide lasting durability
• Integrated handles provide convenient transportation
• A standard 35mm pole socket allows mounting on a stand or on top of a subwoofer

• Active or Passive: Passive
• Frequency Response: 54Hz - 17kHz
• Power Capacity: 1000W Program, 2000W Peak
• Maximum Sound Pressure Level (SPL): 98dB
• Impedance: 8 Ohms
• Crossover: 1.8kHz
• Audio Offset
• LF: 0.0ms
• HF: 0.48ms
• Low Frequency Driver: 1 x 15" (381mm) Black Widow Vented Woofer
• High Frequency Driver: 1 x 0.875" (22mm) RX22 Compression Tweeter with Asymmetrical Quadratic Throat Horn
• Input Connections
• 2 x 1/4" Phone Jacks
• 1 x 4-Pin Twist-Lock Speakon Input
• 1 x 4-Pin Speakon Bi-Amp Input
• Enclosure Material: Aspen Hardwood Plywood with Hammertex Covering, Metal Grille, and Integrated Handles
• Mounting
• 35mm Pole Socket
• 4 x Rubber Feet for Floor Use
• Dimensions (HxWxD)
• Front: 32.45 x 20.55 x 23" (824 x 522 x 584mm)
• Rear: 32.45 x 12.63 x 23" (824 x 321 x 584mm)
• Weight: 91 lbs (41.3kg)
