Decades of speaker production have all been leading to this...

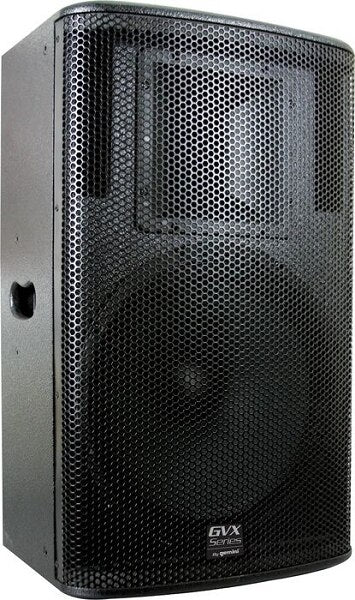

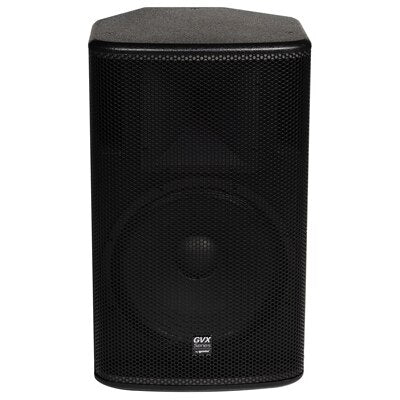

GVX speakers combine a sleek, attractive design with outstanding power handling to produce the finest passive speakers in Gemini’s rich history. Thanks to top-tier components and meticulous engineering, the GVX-15 offers amazing sound quality and outstanding dispersion for nearly any PA application.
With over 35 years of speaker production experience, Gemini has always placed the highest emphasis on reliability, durability and accurate, pristine sound reproduction. And these guiding standards have yielded Gemini’s best sounding speakers to date.
Dispersion means spreading the love.
Wide, clear dispersion was a key focus during the redesign process of the GVX series. As a result, the new GVX-15 distributes pure, full-range sound to even the most extreme areas of any performance space – whether audience members are front and center, fifty rows back or squeezed into a tight corner of a cavernous room.
Passive speakers with aggressive design.
The GVX-15 houses a 15-inch woofer, which handles 500 watts of power RMS (2000 watts peak). Despite these capabilities, the speaker boasts a compact, portable design thanks to its rugged yet lightweight MDF wood construction. Ergonomic recessed handles add to the speaker’s portability, while a 35mm pole mount and 8mm rigging points enhance setup options, ensuring these speakers are equally effective in any number of fixed installation or mobile DJ applications – you can fly ‘em, mount ‘em or wedge ‘em!
GVX drivers are designed to provide dynamic, uniform sound across the frequency spectrum. The 15-inch woofer offers rich, powerful lows and low-mids, while the 1.5-inch wave-guided titanium compression driver provides crisp, lucid highs that don’t sound harsh or piercing. For added versatility, the horn can be rotated, allowing you to change the dispersion pattern of 80° x 60° to 60° x 80°, ensuring proper dispersion whether the speakers are mounted vertically or horizontally. Plus, with Speakon Input and Output connectors, the GVX-15 can easily be integrated into your existing amplification setup.
When style and substance meet exceptional value
Thanks to cutting-edge sound technology and adept engineering, the new GVX series offers powerful, full-range audio accuracy at an unmatched price point from a legacy name you can trust.
Features
- 2-way 500W RMS, 2000W peak power handling
- 15-inch woofer with 2.5-inch (63.5 mm) voice coil and 60oz magnet
- Wave-guided horn with 80 x 60º dispersion
- Titanium driver with 1.5”(38.1mm) coil
- Linear frequency response between 50Hz-20KHz
- Wedge design for use as stage monitor
- Water resistant textured black paint

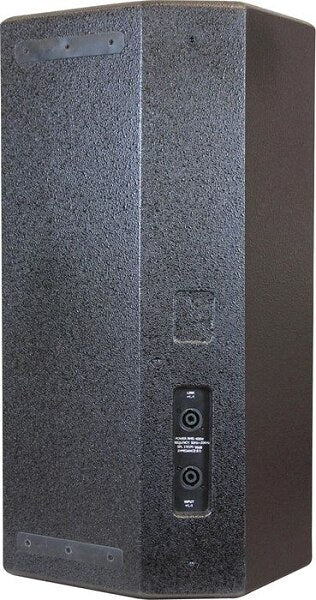

- Speakon Input and Output connectors
- Sensitivity: 99db /1W/1m, Max SPL 132dB
- Trapezoidal design
- 35mm pole mount
- 8mm rigging points
- Ergonomic handles
- Impedance: 8 Ohms
Specifications
- Power-handling (Nominal/Program/Peak): 500W RMS / 1000W /2000W
- Frequency range: 50Hz to 20kHz
- Sensitivity 1W@1m: 99 dB
- Maximum Sound pressure level: 132 dB
- Woofer Impedance: 8 ohms
- Woofer size: 15”
- Woofer Magnet: 60 oz
- Low frequency driver: 2.5” (50mm) Voice Coil
- High Output driver type: Titanium
- High Frequency driver: 1.5”
- High Frequency driver protection: Bulb
- Horn Dispersion: 80° x 60°
- Connectors: 2 x Speakon NL 4 (in/out)
- Electronic crossover frequency: 1.8 Khz
- Enclosure: 18 mm (3/4”), MDF
- Finish: Black acrylic lacquer
- Grille: Perforated steel mesh grille
- Handles: Recessed flush handles
- Pole mount: diameter 35 mm
- Weight: 43 lbs (19.5 kg)
- Dimensions: 16.6" x 27.2" x 17.4" (350 x 615 x 360 mm)
