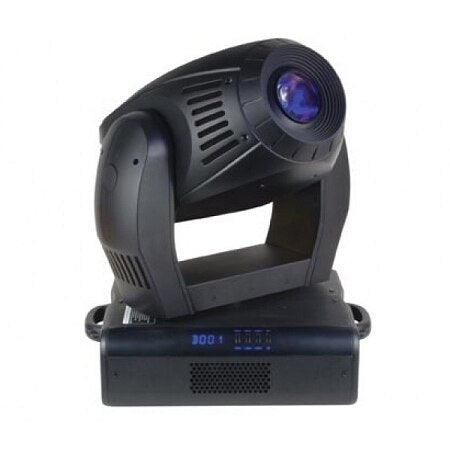

Elation Power Spot 700 CMY-II Features:
Control:
- USITT DMX-512 (16-bit resolution)
- 24 DMX Channels
- 4 Digit LED Display
- On Board Menu Settings
- 3-pin XLR Serial Input/Output
- Sound Active Mode - Built-in Mic
- Lamp On/Off Power
Other Features:
- Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement
Optical System:
- High Output Luminous- Dichroic Glass Reflector
- 14 - 32 Degree Linear Zoom
- All Lenses Are Anti-Reflection Coated
- 4900 lux @ 10M
Colors:
- Full Color Mixing with CMY Flag System
- Interchangeable Color Filters, 8 Dichroic Color Filters CTC, CTB + White, Split Colors
- Continuous, Variable Speed, Color Scrolling in Both Directions (Rainbow Effect)
- More Color Combinations Possible By Overlaying the Multi-Color Dichroic Gobo and the Colors on the Color Wheel
Gobos:
- Gobo-Wheel 1: 7 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
- Gobo-Wheel 2: 9 Fixed Exchangeable Standard Gobos Plus "Open"
- Gobo Outside Diameter 26.9 mm, Image Size 23 mm
- Gobo Thickness: Glass = 1.1 - 3.0 mm, steel = 0.3 mm
- Gobo Overlay (Gobo Morphing)
Animation:
- 1 Variable Speed Replaceable Rotating Animation Wheel
- 4 Extra Animation Wheels Included
- 8 Optional Animation Wheels Available
Shutter/Dimmer:
- Variable Speed Strobe Effect (1-10) Flashes Per Second
- Pre-set Variable/Random Strobe and Dimming Pulse Effect
- Dual Flag Mechanical Dimming System 0%-100%
Iris:
- Beam Narrow to Wide (4% - 100%)
- Variable Speed Iris Macros
- Small to Large and Large to Small Iris Pulse Effect
Frost:
- Variable Frost Control
- Hard Edge to Soft Edge
Prism:
- 3-facet Rotating/Indexing Prism
- Both Directions At Variable Speeds
- Macro-Function For Rotating Gobos/Rotating Prism Combinations
Focus:
- Motor Driven Focus From Near to Far
Zoom:
- 14 - 32 degree Linear Zoom
Lamp:
- Phillips MSR 700/2 (700W, 72V, 7500°K, 1000 HRS) 55000 lumens, base: G22 (Medium Bi-Post)
Pan/Tilt:
- Automatic Pan / Tilt Position Correction
- Maximum PAN-Movement 540° 16-bit Resolution Maximum TILT-Movement 280° 16-bit Resolution
- (LxWxH) 19? x 14? x 29? / 482.6 x 355.6 x 736.6 mm
- 63 lbs. / 28.5 kgs.
Rigging:
- 2 X 1/4 Turn Omega Brackets 4 X M-10 Threaded Holes for Clamps
Power Supply:
- Electronic Ballast
- Voltage: AC 90-260V 50/60Hz
- Power Consumption: 900W (120V=7.5A)
Optional Dual Road Case:
- DRC-700
- DRC-700PRO
