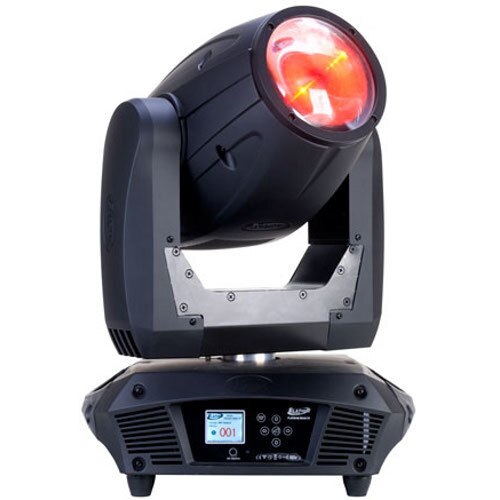

The Platinum Beam 5R Extreme is the next evolution in extreme ACL / Beam moving heads. With improve optics, remote focus and faster movements speeds, this unit is the next evolution from our very successful Platinum Beam 5R. Lighting fast 3 phase motors for all effects give it its new extreme speed effect and the new advance optical design and remote focus allow for razor sharp extreme ACL projections.
Features
- 189W Platinum 5R Beam Xtreme Optics and speed output
- 5R Beam w/ advanced optics, remote focus, and improved ?movement speed
- 100k lux @ 15m
- 3° Beam Angle
- 8 Rotating Indexing Gobos
- 8 Facet Rotating Prism
- 350 w max power
- Wireless DMX Receiver Included
Technical Specifications
- 12 colors
- CTO, CTB, UV
- 1 gobo wheel with 8 metal indexing, rotating and ?interchangeable gobos
- 14/6 mm gobo size
- 3° beam angle
- Focus, dimmer and strobe
- 8 facet rotating prism
- 100k Lux at 15M
- 12/14/18 DMX channels
- 3 pin / 5 pin DMX connectors
- AC 100-240V, 50/60 HZ
- 350W power consumption
- IP20
- Cooling: 1 roller fan +3 fan
- MSD Platinum 5R lamp
- 39.6 lbs / 18 kgs
- Dimensions: 8.9” x 12” x 16.5” / 225x310x420MM
- cETLus approved
