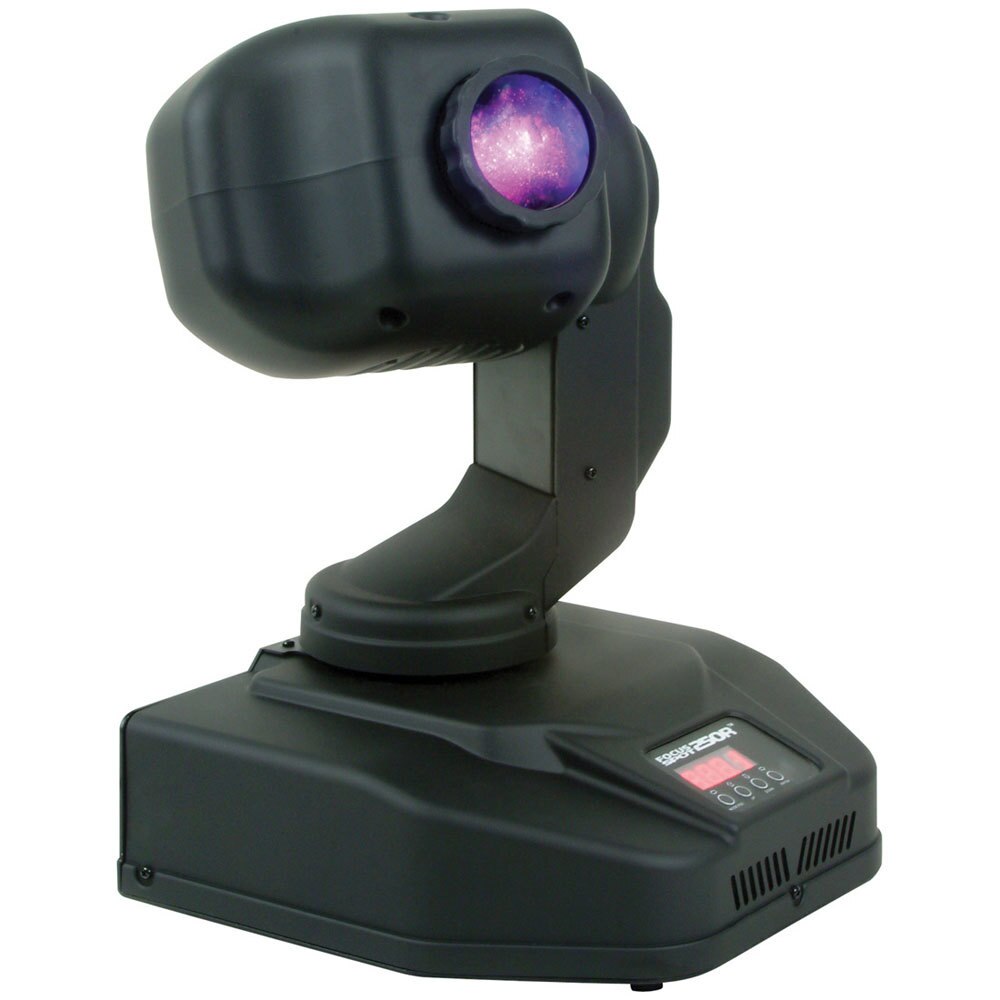

Elation Focus Spot 250R Features:
Colors:
- 8 Dichroic Colors + White
- Continuous Color Scroll
Gobos:
- One gobo wheels
- 6 interchangeable, indexable, rotating gobos + spot;
- 3 metal gobos, 2 dichroic glass gobos, 1 textured glass gobo
- Gobo Size 27mm (outside dimensions) / 24mm (inside dimensions)
- Gobo shake effect
- Continuous gobo scroll
Shutter/Dimmer:
- Variable speed strobe pulse effect
- Mechanical Dimmer 0-100%
- Mechanical high speed shutter
Light Source:
- 4,800 Lux / 446 fc @ 16 feet / 5 meters
- Lamp life: 3,000hr 8,500°k, 250W
- Lamp: Philips MSD250/2
Optical System:
- 18° beam angle
- Motor driven focus from near to far remote focus via DMX
- Dichroic Glass Reflector
- High luminous-efficiency axial reflector and double - condenser lens system cold dichroic reflector
- Anti-reflection coated lenses
Movement:
- Maximum pan movement 580° in 3.5s / 16 bit
- Maximum tilt movement 265° in 2.0 s / 16 bit
- Fine Pan & Tilt (16 bit resolution)
- Automatic pan/tilt correction
Control:
- 11 DMX channels
- 4 Digit Digital LED Display
- USITT DMX-512 (16-bit resolution)
- RDMX - Remote DMX Addressing
- Pre-programmed movements via DMX
- Self Test & Stand Alone settings
Operation Parameters:
- Rigging: 2 x 1/4 turn fastener brackets, 1 x safety cable hole
Power Supply:
- Magnetic ballast
- Voltage: 115/208/230/240V AC, 50/60 Hz
- Power consumption: 500W
- Fuse: 8A
- Connectors: 3 pin XLR serial input/output
- Dimensions (L x W x H): 13? x 13? x 22? / 320 x 338 x 559mm (Head up)
- Weight: 35lbs / 7.3kg
