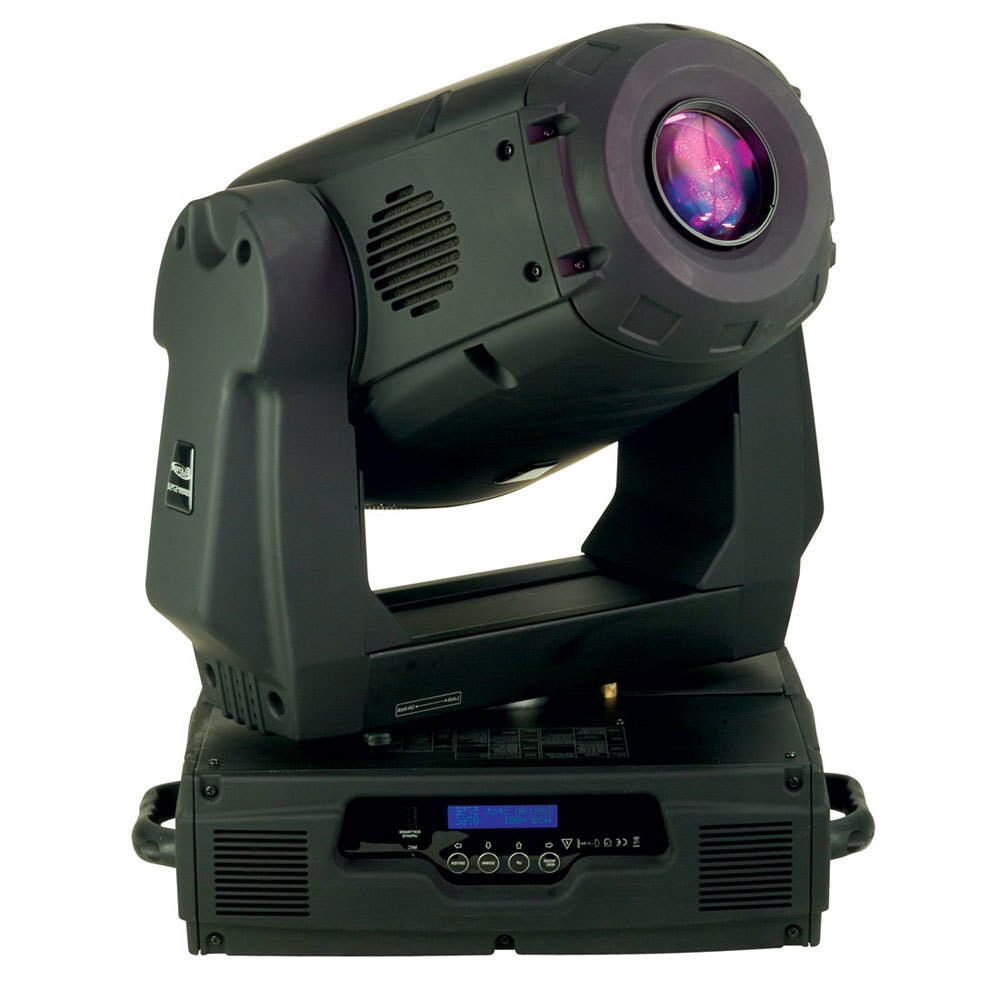

Elation Design Spot 575E Features:
Optical System:
- High output luminous-parabolic dichroic reflector
- 15? to 30? linear Zoom
- All lenses are anti-reflection coated
- 29,700 lux @ 2.5M
Colors:
- Full Color mixing with CMY flag system
- 8 Dichroic filters, 7 color, UV + White
- Continuous, variable speed, color scrolling in both directions (rainbow effect)
- More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
Gobos:
- 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
- 6 interchangeable, indexable, rotating gobos plus open
- 6 interchangeable, indexable, rotating gobos plus open
- Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
- Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
- Gobo Overlay (Gobo Morphing)
Animation:
- 1 rotating animation wheel
Shutter/Dimmer:
- Variable speed strobe effect (1-13) flashes per second
- Pre-set variable/random strobe and dimming pulse effect
- Dual Flag mechanical dimming system
Iris:
- Beam narrow to wide (5% - 100%)
- Variable speed iris macros
- Small to large and large to small
Frost:
- Variable Frost Control
- Hard edge to soft edge
Prism:
- 3-facet rotating/Indexing Prism
- Both directions at variable speeds
- Macro-function for rotating gobos/rotating prism combinations
Focus:
- Motor driven focus from near to far
Zoom:
- 15 - 30 degree linear Zoom
- RDMX - Remote DMX Addressing
- USITT DMX-512 (16-bit resolution)
- 24 DMX Channels
- 32-Character LCD display
- On board menu settings
- 3-pin XLR serial input/output
- Sound active mode
Lamp:
- Phillips MSR575/SA2DE 7500K, 1000hr
Pan/Tilt:
- Automatic Pan / Tilit position correction
- Maximum PAN-movement 630? in 2.0 secs (default) or 540? (user selectable) / 16 bit
- Maximum TILT-movement 265? in 1.5 secs / 16 bit
- Vector Mode with blackout
Rigging:
2 X 1/4 Turn omega brackets
Power Supply:
Electronic Ballast
Voltage 90- 240vAC 50/60Hz
Power Consumption: 600W (120V = 7A)
Optional Dual Road Case:
DRC-700
