Features
- CMY + 8 colors + 12 gobos

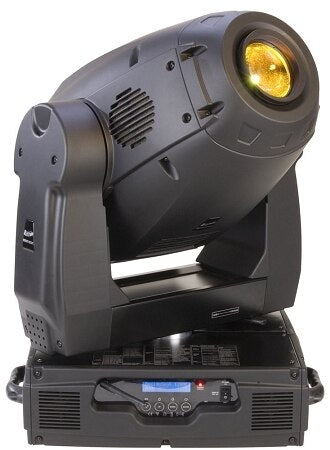

- 1200 Watt Compact Moving Head Hybrid
- Hybrid Spot / Wash In One
- 16° - 41° Variable Beam Angle
- Modular Construction
- EWDMX + RDMX + Fan & Lamp Control
- Animation Effect Wheel + 2 Rotating Prisms
Colors
- CMY color mixing + variable CTO
- 8 Static / replaceable dichroic colors including CTO, CTB and UV
Gobos
- 2 gobo wheels (indexable/replaceable)
- Gobo-Wheel 1: 5 rotating gobos plus open
- Gobo-Wheel 2: 5 rotating gobos plus open
Special Effects
- Animation effect wheel
- 2 rotating / indexing prisms (3-facet & 3D prism)
- Variable zoom frost
- Variable iris
Shutter/Dimmer
- Strobe effect (1-10) flashes per second
- Continuous mechanical dimmer 0-100%
Light Source
- 17,880 Lux / 1,661 FC @ 16 feet / 5 meters
- Lamp life: 750hrs 6,300°k, CRI 85
- Lamp: Phillips MSR1200/2 SA/DE
Optical System
- 16° - 41° variable beam angle
- Variable focus
- Parabolic dichroic glass reflector
- lenses hardened and tempered, anti-reflex coated
- Extreme light output
Movement
- 630° PAN, 265° TILT
- Pan/Tilt Lock
Control
- 27 DMX channels standard mode
- 38 DMX channels extended mode
- Digital LCD blue / white menu display
- RDMX, 3 pin or 5 pin DMX in/out
- EWDMX wireless DMX receiver built in
Operation Parameters
- DB Rating: 56.3DB @ 0.91m
- Compact case design (size of a 575)
Power Supply
- Electronic ballast
- Voltage: 208-240v / 60hz
- Power consumption: 1478W
- Fuse: 6H/2A/15A
Connectors
- 3-pin and 5-Pin XLR serial input/output
Dimensions and Weight
- Dimensions (L x W x H): 18.5” x 18.2” x 20.3”
- / 470 x 367 x 641.5mm (Head up)
- Weight: 78.8 lbs / 35.6 kg
