An Elegant Solution For Personal Monitoring On Stage Or In The Studio

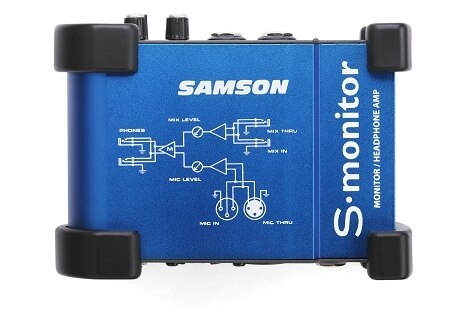

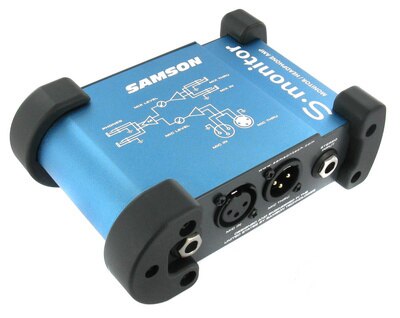

The Samson S-monitor is a lightweight, well built and inexpensive personal headphone monitoring solution for use during rehearsal, stage performance, or studio recording.

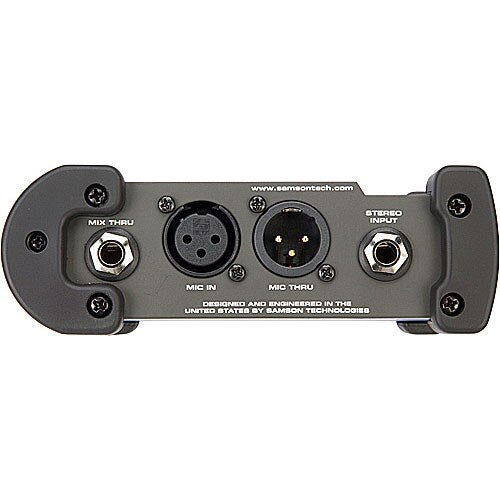

Microphone and Mix inputs are accepted on XLR and 1/4" stereo connectors, respectively. There is an XLR Thru/Out microphone send back to the console, and an additional 1/4" stereo Mix Thru for daisy-chaining multiple S-monitor units.

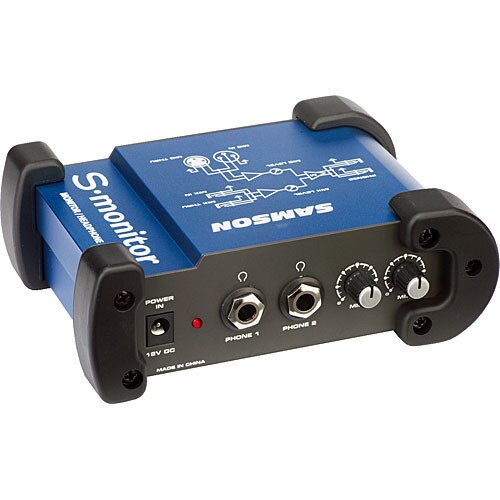

There are, additionally, a pair of 1/4" headphone outputs, which accept a wide range of headphone impedances. Individual volume knobs have also been provided for both Microphone and Mix level control. The S-monitor offers a lot of value, packed into a miniature frame at a very reasonable price point.
Features
- Small, lightweight Personal Monitor for stage or studio
- High input, low noise operation
- XLR Microphone input, XLR Thru/Output send to mixer
- 1/4" Stereo Mix input
- Daisy-Chaining via 1/4" Stereo Mix output
- Individual Microphone and Mix volume control knobs
- Dual Headphone outputs
Specificaitons
- Frequency Response: 10 Hz - 30 kHz +/-3 dB
- Signal-to-Noise Ratio: >90 dB
- Channel Separation: Not specified by Manufacturer
- Maximum Input Level: +19 dBu
- Input Pad Switch: No
- Output Level: +18 dBu
- Input Connections
- 1 x XLR Female Microphone Input, Balanced
- 1 x 1/4" TRS Phone Stereo Mix Input, Balanced
- Output Connections
- 1 x XLR Male Microphone Thru/Out, Balanced
- 1 x 1/4" TRS Phone Stereo Mix Thru, Balanced
- 2 x 1/4" TRS Headphone Outputs
- Input Cable: No
- Power Requirements: 18 VDC Adapter
- Battery Life: Not Applicable
- Limiting: No
- Equalization: No
- Personal Mix Control
- 1 x Microphone Volume Control Knob
- 1 x Mix Volume Control knob
- Dimensions: 5.65 x 4.13 x 2" (144 x 105 x 51mm)
- Weight: 16.5 oz (419 g)
