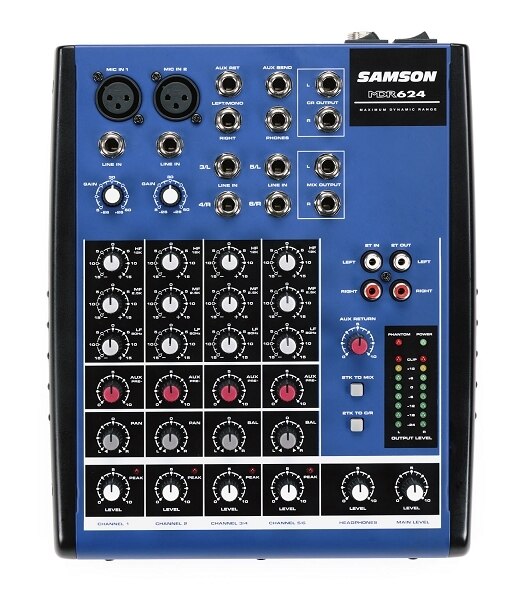

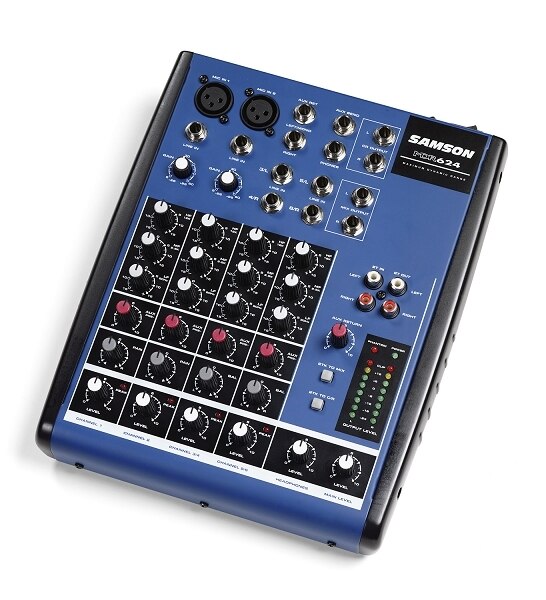

The Samson MDR624 is a small cost effective 6-channel audio mixer suitable for project studio recording and light sound reinforcement applications. The MDR624 features a total of 6 line level inputs with 1/4" TRS phone connections and 2 microphone inputs with 3-pin XLR female connections. Stereo Aux send and return, Mono, Mix and Control Room outputs are all provided.
Features
- Full-featured compact mixer for live or studio use
- Two high quality Microphone preamps
- 3-band EQ on all channels
- Two stereo channels
- 8 Segment Stereo LED Bar VU Meter
3-Band EQ
The 3-band EQ section provides low, mid and high frequency audio contouring on every input channel.
Mono and Stereo Inputs
A total of 6 line inputs via 1/4" phone connections are provided. Channels 3-4 and 5-6 are L/R stereo paired.
Specifications
- Total # Of Inputs: 6
- Mic/Line Inputs
- 2 - Microphone: 3-pin XLR female (Neutrik Connection)
- 6 - Line: 1/4" Phone female
- Stereo Line Inputs: 2 - L/R 1/4" Phone (Channels 3/4 and 5/6)
- In-Line Inputs/Returns: No
- AUX Sends: 1 - Stereo 1/4" Output
- AUX Returns: L/R 1/4" Phone
- Inserts: No
- BUS (Group) Outputs: Utilizes 2-Track I/O to route channel signal to and from recorder
- 2 Trk Master I/O
- Mix Out: L/R 1/4" Phone
- Control Room Out: L/R 1/4" Phone
- ALT I/O: 2-Track In/Out: x2 L/R RCA Phono
- Monitor Outputs: Headphone - Single 1/4" TRS Phone
- EQ Section
- High Shelving - 12kHz +/- 15dB
- Mid Peaking - 2.5kHz +/- 15dB
- Low Shelving - 90Hz +/- 15dB
- Solo/Mute: No
- Channel Level Control: 60mm Auto Taper Fader
- Trim/Gain Control
- Mic to Main - 74dB
- Line to Main - 56dB Mono Ch
- Line/Tape to Main - 34dB Stereo Ch
- Aux Return to Main - 20dB
- Mic to Aux Send - 74dB
- Line to Aux Send - 34dB Stereo Ch
- Phantom Power: +48V
- Metering: 6-Segment LED Peak Meters
- Frequency Response
- Mic to Main 5Hz - 54kHz
- Line to Main 5Hz - 54kHz
- Aux Return to Main 5Hz - 98kHz
- Line to Aux Send 5Hz - 57kHz
- Dynamic Range: Not specified by manufacturer
- Signal-to-Noise Ratio
- Equivalent Input Noise ("A" filter on, input shorted)
- Mic -128dB
- Line -104dB
- Total Harmonic Distortion (THD)
- Trim @ Min, +4dBu output, unity gain, 1kHz w/30 kHz LPF
- Mic/Line to Main - 0.02% Mono ch
- Line to Main - 0.02% Stereo ch
- Line to Aux Send - 0.02%
- Power Supply: 110V - 240V, 50/60Hz
- Dimensions: 9.02 x 10.75 x 3.50" (229 x 273 x 89mm)
- Weight: 4.5 lbs (2.1 kg)
