Take The MDR Out Anywhere!

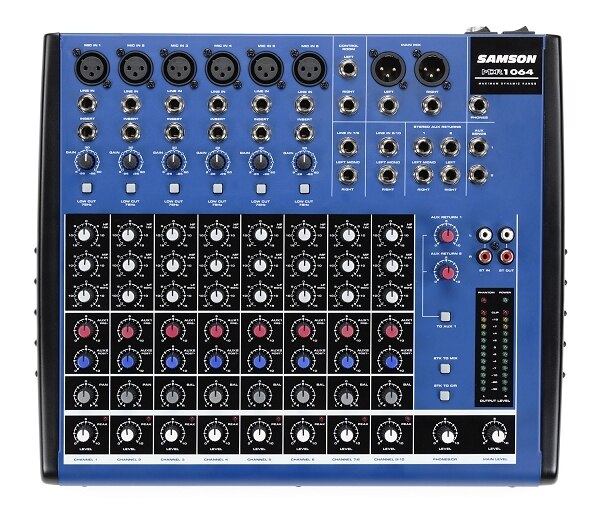

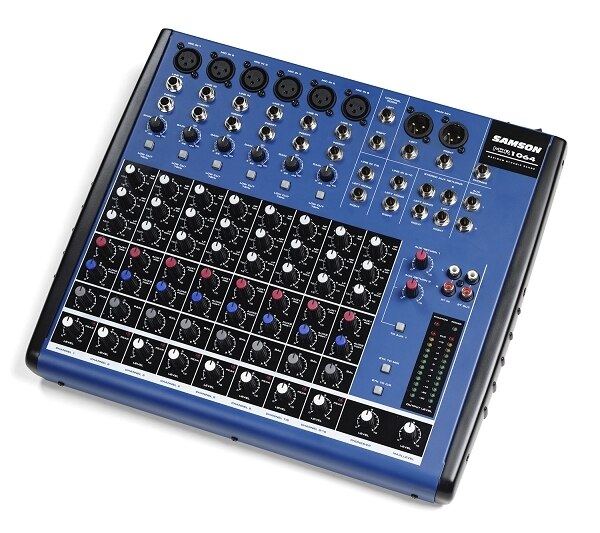

The Samson MDR1064 is a compact 10-channel audio mixer with a loaded feature set and an affordable price. The MDR1064 provides 6 mono channels with XLR mic and 1/4" phone line connectors. Channels 7/8 and 9/10 are stereo paired with 1/4" phone line connections. Additional features include 3 band EQ section on each input. The MDR1064 is an ideal choice for light sound reinforcement, project studio recording and video editing.
Features
- Full-featured compact mixer for live or studio use
- Six high quality Microphone Pre Amps with Channel Inserts
- Two Stereo Channels
- 3 band EQ on all channels
- Dual Auxiliary Sends
- 8 Segment Stereo LED Bar VU Meter
Specifications
- Total # Of Inputs: 10
- Mic/Line Inputs
- 6 Microphone: 3-pin Balanced XLR
- 10 Line: 1/4" TRS Phone
- Stereo Line Inputs: Channels 7/8 and 9/10: 1/4" Phone Line
- In-Line Inputs/Returns: No
- AUX Sends: 2 - 1/4" Phone
- AUX Returns: 2 L/R 1/4" Phone
- Inserts: Mono Inputs 1 - 6: 1/4" TRS Phone
- BUS (Group) Outputs: Stereo output only
- 2 Trk Master I/O
- Main Mix: L/R 3-pin XLR
- Main Mix: L/R 1/4" TRS Phone
- 2T In: L/R RCA Phono
- 2T Out: L/R RCA Phono
- ALT I/O: No
- Monitor Outputs: CR (Control Room): L/R 1/4" Phone
- EQ Section
- High Shelf - 12kHz +/- 15dB
- Mid Peaking - 2.5kHz +/-15dB
- Low Shelf - 80Hz +/- 15dB
- Low Cut Filter - 75Hz, 18dB/oct.
- Solo/Mute: No
- Channel Level Control: Rotary Controls
- Trim/Gain Control: Rotary Controls
- Phantom Power: +48V
- Metering: 12 Point LED Meters
- Frequency Response: 10Hz to 45kHz
- Dynamic Range: Not specified by manufacturer
- Signal-to-Noise Ratio: 105dB
- Total Harmonic Distortion (THD): 0.005% @ 4dBu 1kHz +
- Power Supply: USA/Canada 108 - 132V, 60Hz
- Dimensions: 12.2 x 12.5 x 2.8" (310 x 318 x 70mm) (WxDxH)
- Weight: 6.8 lbs (3.1 kg)
