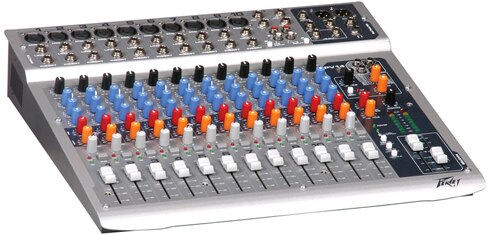

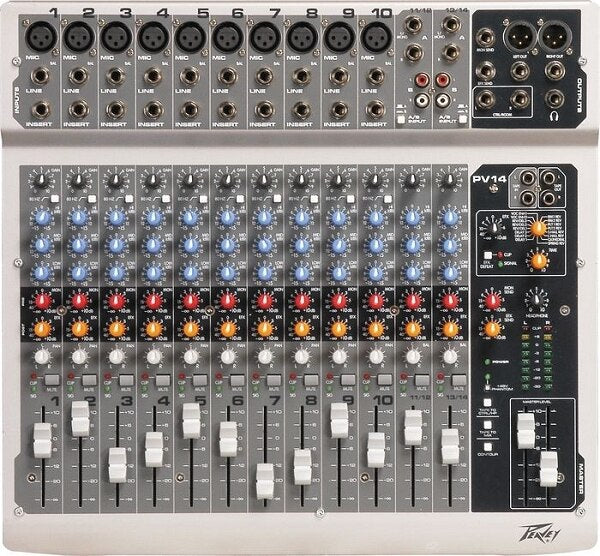

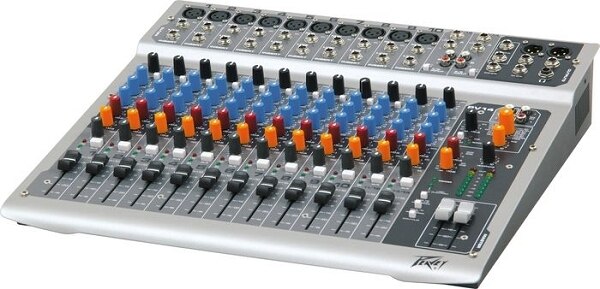

Compact Mixer with a Ton of Features! The Peavey PV14 Sound Reinforcement Mixer features a total of 14 input channels and RQ (Reference Quality) microphone inputs that deliver transparent audio fidelity with low noise. Two of the 14 input channels are dedicated stereo channels for keyboards, stereo player devices, drum machines, etc. An internal DSP processor provides a selection of reverb, delay and chorus effects. A 3-band EQ section is featured on all channels and globally switched +48V phantom power is supplied to condenser microphones. The PV14 is an ideal sound reinforcement mixer for small venue installation, schools, house-of-worship audio, etc. Features14-channel chassis with two dedicated stereo channelsBuilt in DSP effects processor with reverb, chorus and delay effectsRQ (Reference Quality) microphone preamps3-band EQ section on all channels
Specifications
- Total # Of Inputs: 14Mic/Line Inputs 14 Line: 1/4" TRS Phone 10 Microphone: 3-pin XLR
- Stereo Line Inputs: 2 Stereo
- In-Line Inputs/Returns: No
- AUX Sends: Single Stereo Effects Output
- AUX Returns: Stereo L/R Effects Return
- Inserts: All ChannelsBUS (Group) Outputs: Stereo Output
- 2 Trk Master I/O: CTRL Room: Stereo Paired 1/4" PhoneALT I/O ALT Stereo: L/R Stereo Paired 1/4" Output Main Output: L/R Stereo Paired 1/4" Output
- Monitor Outputs: Monitor Send
- EQ Section: 3-BandSolo/Mute: All Input Channels
- Channel Level Control: 60mm Faders
- Trim/Gain Control: Rotary Potentiometers
- Phantom Power: +48V Phantom individually switched
- Metering: 6 Segment, Peak Reading (0dB = +4dBu)
- Frequency Response: 20Hz to 20kHz < 1dB
- Signal-to-Noise Ratio: Master Left / Right: 102dB
- Total Harmonic Distortion (THD): <0.01% 20Hz to 20kHz Mic to Left/Right Output (10Hz to 80kHz BW)
- Power Supply: Domestic: 16VAC 60Hz, 12W Nominal
- Dimensions (WxHxD): 16.12 x 3.5 x 14.75" (30.80 x 8.89 x 37.47cm)
- Weight: 12.1 lbs (5.49kg)
