Highly compact, excellent quality.

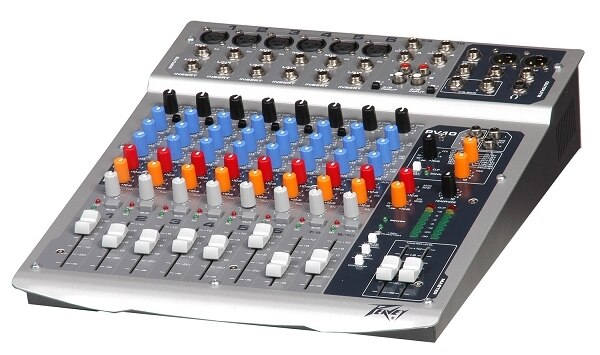

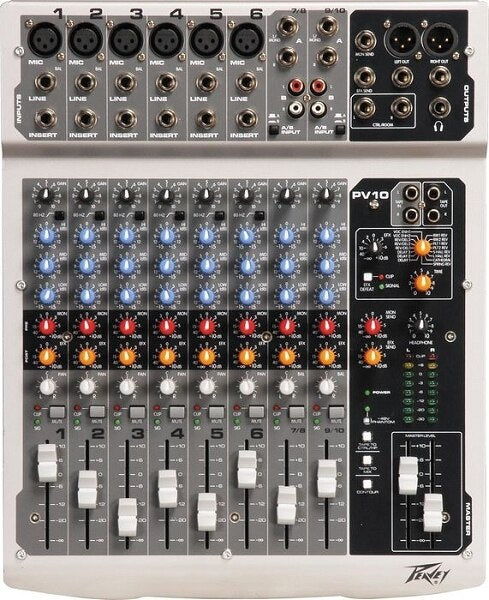

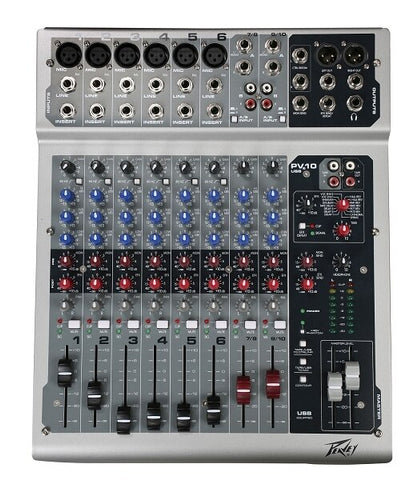

The Peavey PV10 10-Channel Recording Mixer is a cost effective desktop audio console that is sure to satisfy home and project producers of all types. The PV10 features 10 input channels with line inputs and super-low noise microphone preamps.
An internal DSP effects engine hosts an array of on-board effects that include, delays, reverbs, chorus effects and more. Additional features include comprehensive LEDs and +48V phantom power (globally switched).
Features
- Internal DSP effects that include reverb, delay and more
- 3-band EQ on every channel
- Super low-noise microphone preamps
- Stereo channels
Specifications
- Total # Of Inputs: 10 Channels
- Mic/Line Inputs
- Balanced XLR Microphone x6
- 1/4" TRS Phone Line x10
- Stereo Line Inputs: 1/4" TRS and RCA Phono Line x2
- In-Line Inputs/Returns: No
- AUX Sends: 2 - Mon and FX Send
- AUX Returns: No Dedicated
- Inserts: 1/4" TRS Phone (all channels)
- BUS (Group) Outputs
- Balanced XLR Control Room Outputs
- Balanced 1/4" TRS Phone Monitor Outputs
- ALT I/O: RCA Phone A/B In and Out x2
- Monitor Outputs: 1/4" TRS Phone Headphone
- EQ Section: 3-Band
- Solo/Mute: Mute on Every Channel
- Channel Level Control: Fader
- Trim/Gain Control: Rotary Pot
- Phantom Power: +48V Globally Switched
- Metering: Peak LED
- Frequency Response: 14Hz to 25kHz +0dB / -1dB
- Dynamic Range: Not Specified By Manufacturer
- Signal-to-Noise Ratio: -129dBu (EIN)
- Total Harmonic Distortion (THD): < 0.02% 20Hz to 20kHz Mic to L/R Output
- Power Supply: 100-240VAC 50/60Hz 13W
- Dimensions: 12 x 14.75 x 3.5" (30.80 x 37.47 x 8.89cm)
- Weight: 9.3 lb (4.33kg)
