Multipurpose mixer with USB for live sound, recording, and production.

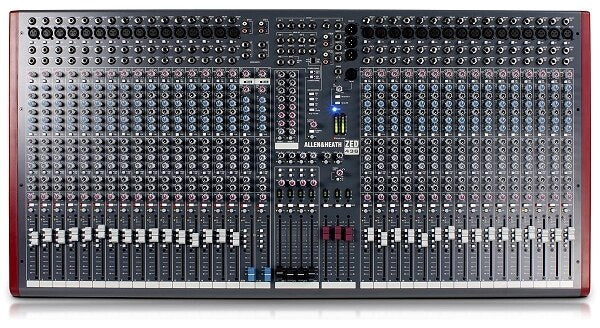

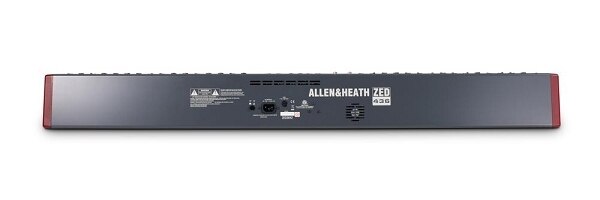

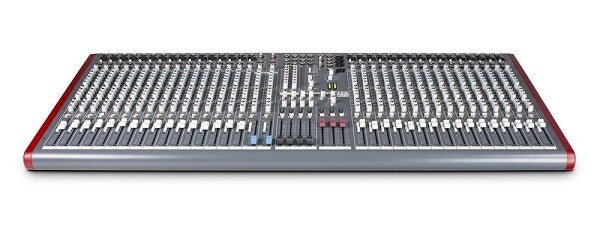

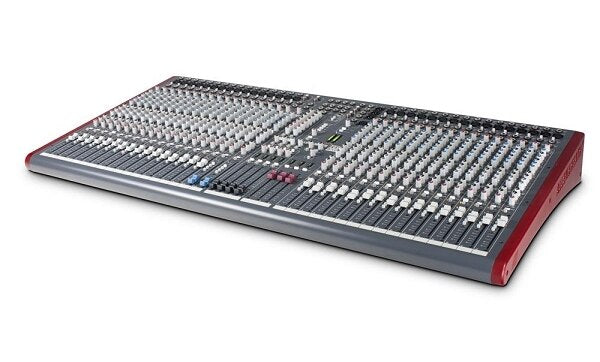

The Allen and Heath ZED-436 Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-436 features 36 inputs comprised of 32-mono and 2-stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ.
Four assignable output buses are featured for comping or routing individual channels to multitrack recorders, monitors, etc. The ZED-436 features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included.
Features
- 32 mono channels
- 2 dual stereo inputs with 4-band EQ
- Neutrik mic XLR
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain ‘DuoPre’ mic line input
- 4-band EQ with 2 swept mids and in/out switch
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
- 4 sub groups fed from each channel
- All inputs with level control
- 12 bar meters
- L, R and M main mix outputs
- 2 matrix sections available; can send output to USB
- Individual channel 48V phantom power
- Direct output on every mono channel
- Peak and signal indication on every channel
- Configurable USB stereo audio in/out
- Master level controls on all outputs
- Easy to use layout – all connections and controls on top surface
USB Connection
A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.
Four Buss Outputs
Four assignable output buses are featured for comping or routing individual channels to multitrack recorders, monitors, etc.
32 Mono Inputs
There are 32 mono channels with line and microphone input connections.
Two Stereo Inputs
The two stereo channels feature stereo-paired 1/4" phone connectors for stereo devices such as recorders, effects, keyboards, etc.
Flexible EQ Section
All mono channels feature a 3-band EQ with sweepable mid-range. The stereo channels feature 2-band EQ.
Inserts
Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
Balanced Outputs
The main output section feature a pair of balanced XLR connectors.
Specifications
- Total # Of Inputs: 32
- Mic/Line Inputs
- 3-pin XLR Balanced Microphone x32
- 1/4" Phone Balanced Line x36
- Stereo Line Inputs: ST1 - ST2 1/4" Phone L/R Stereo
- In-Line Inputs/Returns: No
- AUX Sends: 1/4" TRS Phone x4
- AUX Returns: No
- Inserts: 1/4 TRS Phone x38 (Mono chs., Main Stereo Out and Four Buses)
- BUS (Group) Outputs: 1/4" TRS Phone x4
- 2 Trk Master I/O
- Main Output: Balanced 3-pin XLR
- Mono Output: Balanced 3-pin XLR
- ALT I/O
- USB Connector
- 1/4" Phone Mono Output
- 1/4" Phone Direct Outputs x16
- Monitor Outputs
- RCA Stereo Phono - ALT Out
- RCA Stereo Phono - REC Out
- EQ Section
- 3-Band with Mid Sweep On all Mono Channels
- 2-Band On Stereo Channels
- Solo/MuteL Mute and PFL Solo
- Channel Level Control: 100mm Fader
- Trim/Gain Control: Rotary Control
- Phantom Power: +48V Switched Globally
- Metering: 12 Segment Peak LEDs
- Frequency Response: 20Hz to 20kHz
- Dynamic Range: Not Specified By Manufacturer
- Signal-to-Noise Ratio: -88dBu
- Total Harmonic Distortion (THD): 0.004%
- Power Supply: 100-240V 47-63Hz 40W Max
- Dimensions (WxHxD): 44.7 x 5.07 x 22.1" (1135 x 129 x 465mm)
- Weight: 48.5 lb (22 kg)
