Fantastic sound, rugged build, and imaginative features.

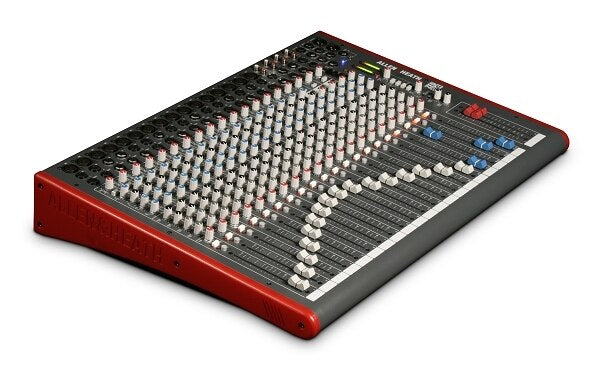

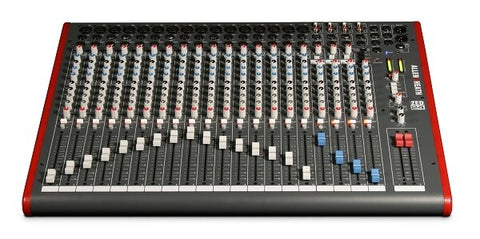

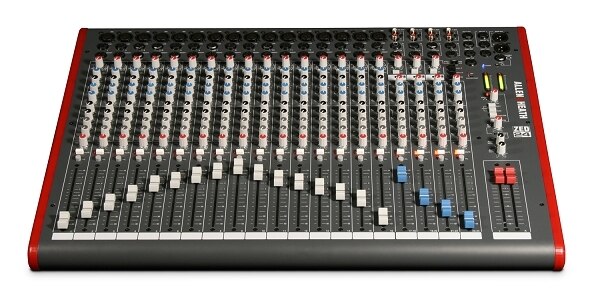

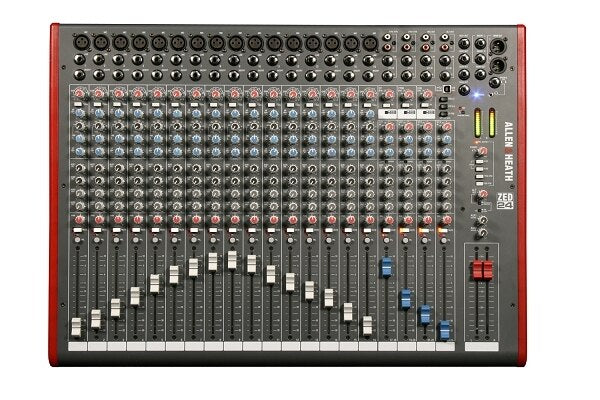

The Allen and Heath ZED-24 Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-24 features 24 inputs comprised of 16-mono and 4-stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-24 features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included.
Features
- 16 mono channels
- Neutrik mic XLR
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain ‘DuoPre’ mic line input
- 3 band EQ with MusiQ
- 4 auxes
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- 4 stereo channels with 2-band EQ and inputs for extra sources
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Cakewalk SONAR X1 LE bundled with mixer
USB Connection
A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.
16 Mono Inputs
There are 16 mono channels with line and microphone input connections.
Four Stereo Inputs
The four stereo channels feature stereo-paired 1/4" phone connectors for stereo devices such as recorders, effects, keyboards, etc.
Flexible EQ Section
All mono channels feature a 3-band EQ with sweepable mid-range. The stereo channels feature 2-band EQ.
Inserts
Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
Balanced Outputs
The main output section feature a pair of balanced XLR connectors.
Specifications
- Total # Of Inputs: 24
- Mic/Line Inputs
- 3-pin XLR Balanced Microphone x16
- 1/4" Phone Balanced Line x24
- Stereo Line Inputs: ST1 - ST4 1/4" Phone L/R Stereo
- In-Line Inputs/Returns: No
- AUX Sends: 1/4" TRS Phone x4
- AUX Returns: 1/4" TRS Phone x4
- Inserts: 1/4 TRS Phone x18 (Mono chs and Main Stereo Out)
- BUS (Group) Outputs: No
- 2 Trk Master I/O: Main Output: Balanced 3-pin XLR
- ALT I/O: USB Connector 1/4" Phone Mono Out
- Monitor Outputs
- RCA Stereo Phono - ALT Out
- RCA Stereo Phono - REC Out
- EQ Section
- 3-Band with Mid Sweep On all Mono Channels
- 2-Band On Stereo Channels
- Solo/Mute: Mute and PFL Solo
- Channel Level Control: 100mm Fader
- Trim/Gain Control: Rotary Control
- Phantom Power: +48V Switched Globally
- Metering: 12 Segment Peak LEDs
- Frequency Response: 20Hz to 20kHz
- Dynamic Range: Not Specified By Manufacturer
- Signal-to-Noise Ratio: -88dBu
- Total Harmonic Distortion (THD): 0.004%

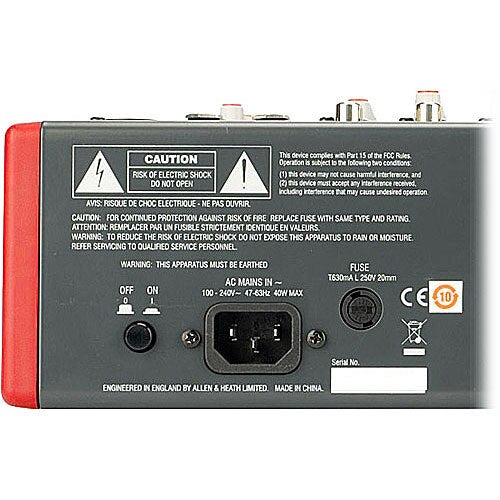

- Power Supply: 100-240V 47-63Hz 40W Max
- Dimensions (WxHxD): 25.4 x 4.35 x 18.3" (645.19 x 110.69 x 465mm)
- Weight: 23 lb (10.5 kg)
