The Gemini UHF-4200M: Dual 100-Channel UHF Wireless System is designed for live sound reinforcement applications such as for concerts, DJs, lectures, karaoke, and houses of worship. The system consists of a dual-channel UHF wireless receiver and two UHF wireless transmitter microphones. The system allows you to transmit on 100 different UHF transmission channels and has a range of 250'. You can set your transmission frequency manually or let the system do it automatically.

To prevent phasing problems, the system utilizes a specialized phase locked loop circuit. The front panel of the receiver features rotary volume controls, buttons for group selection, channel selection, transmitter sync, and LED indicators for transmission channel, RF, and AF signal strength. The back of the unit features balanced XLR and unbalanced 1/4" outputs to make it easy to connect to different mixers and signal processors.

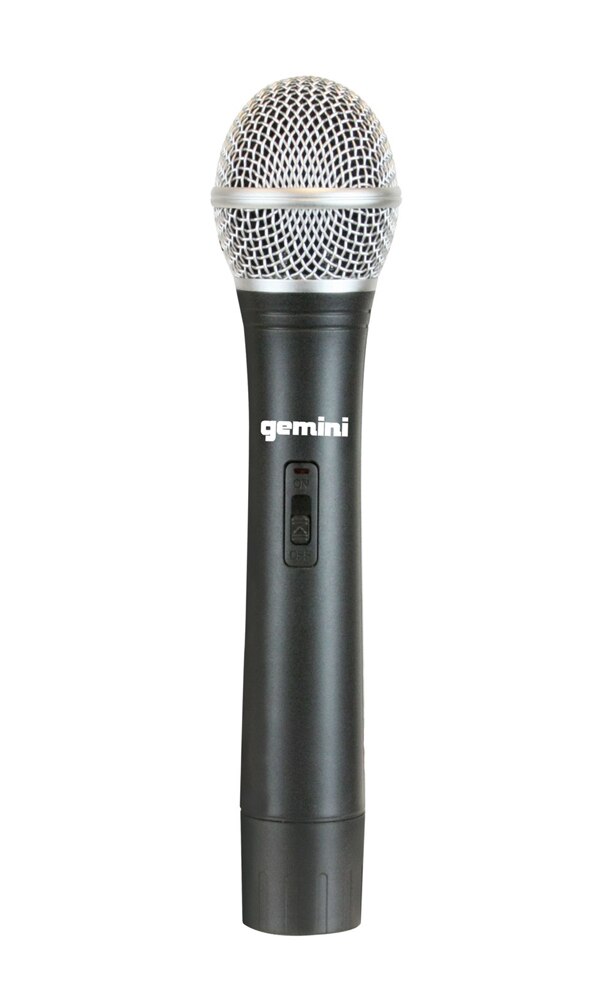

This system comes included with two handheld microphone transmitters. Up to eight microphones can be connected within the transmission frequency band using multiple receivers. Each handheld microphone transmitter is designed with high sensitivity unidirectional cardioid capsule and noise absorbing components in the microphone barrel to eliminate handling noise and the shock of flipping the power switch. Each includes a power on/mute button and will run for up to 8 hours on two AA batteries.

Features

Dual UHF receivers with 250′ range
US: 100 operating frequencies between 682MHz and 698MHz
EUR: 100 operating frequencies between 854MHz and 864MHz
Allows up to 8 mics to be used simultaneously without interference
Switchable automatic/manual frequency selection
Phase Locked Loop (PLL) circuitry for increased reception
RF and AF LED indicators for monitoring incoming signal strength
Auto mute with built-in noise reduction
Front panel output level control
Balanced XLR and unbalanced 1/4″ outputs
Microphone On/Off switch
Unidirectional, dynamic handheld microphone transmitters

100 Transmission Channels

The system provides you with 100 channels on which to transmit

Range of 250'

The system can transmit up to 250' with optimal conditions

Manual and Automatic Channel Selection

You can manually select the transmission channel or have the receiver and transmitter sync automatically

LED Indicators for RF, AF, and Channel

The receiver features LED indicators for RF, AF, and channel selection

Balanced XLR and Unbalanced 1/4" Outputs

For connecting to different mixers and signal processors, the receiver features both balanced XLR and unbalanced 1/4" output connectors

Up to 8 Hours Run Time On Two AA

Each handheld microphone transmitter can run for up to 8 hours on two AA batteries

Phase Lock Loop Circuit

To prevent phasing problems, the receiver utilizes a phase lock loop circuit

Specifications

Receiver

Frequency Range

USA: 682 to 698 MHz
Europe: 854 to 865 MHz

Transmission Range: 250' (76.2 m)
Receiving System: PLL synthesized
Frequency Stability: ± 0.005%
Frequency Response: 50 to 15,000 Hz ±3 dB
Signal-to-Noise Ratio: 90 dB
Modulation Mode: FM
IF Frequency: 80.5 MHz
THD: 1% at 1,000 Hz
Sensitivity: 10 dBuV (FM: 40 kHz, S/N > 85 dB)
Power Supply: 12 VDC
Audio Output

Balanced XLR
Unbalanced 1/4"

Dimensions (HxDxL): 1.8 x 5.43 x 8.27" (45 x 138 x 210 mm)
Weight: Not specified by the manufacturer

Transmitter

RF Power Output: < 10 dBm
Oscillation Mode: PLL Synthesized
Spurious Emission: > 50 dB below carrier frequency
Modulation: ± 60,000 Hz
Current Consumption: 100 mA
Battery Type: 2 x AA Alkaline
Battery Life: 8 Hours
Microphone Element: Unidirectional Dynamic Microphone
Polar Pattern: Cardioid
Dimensions (Diam. x L): 1.5 x 9.84" (38 x 250 mm)
Weight: Not specified by the manufacturer
