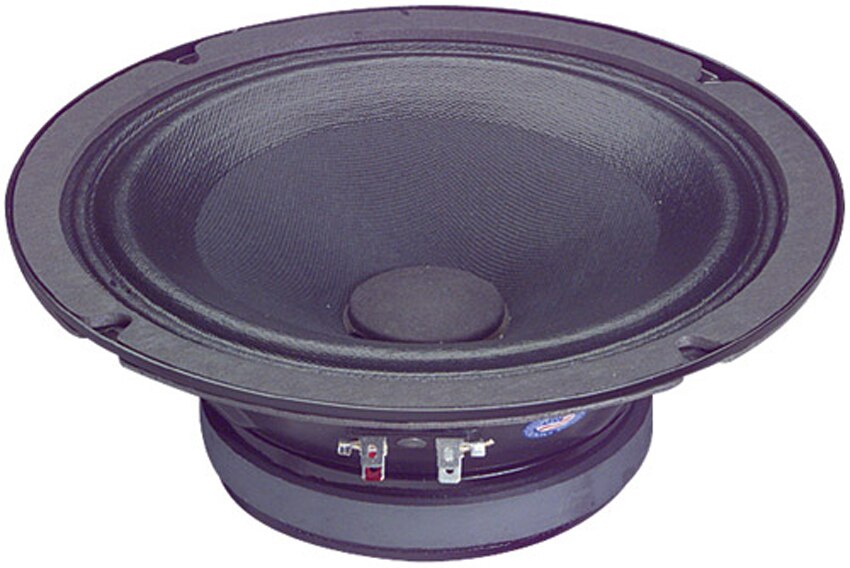

The Eminence Alpha-8A Mid-Bass Loudspeaker Driver is part of thier American Standard Series and is designed to install into custom made or prefabricated speaker cabinets, that will accomodate a 8" (203.2mm) diameter mid-bass driver.
The speaker will deliver up to 125W of power at 8 ohms and will adequately reproduce vocals, live musical performances, recorded music and other audio signals in mid-level professional sound reinforcement applications. Some of the many applications include sound reinforcement speakers for DJs, musicians, small and mid-sized venues, stage monitors, and much more.
Features
- 8" (203.2mm) driver for cabinet installation
- 125W of power at 8ohms
- 20oz magnet and 1.5" (38.1mm) voice coil
Specifications
- Power: 125W
- Nominal Impedance: 8 Ohms
- Sensitivity: 94dB
- Frequency Response: 58Hz - 5kHz
- Primary DC Resistance: 5.3
- Voice Coil: 1.5" (38.1mm)
- Magnet: 20oz
- Construction
- Polymide Coil: Copper
- Magnet Composition: Ferrite
- Core Details: Vented and Extended
- Basket Materials: Pressed Steel
- Cone Composition: Paper
- Cone Edge: Cloth
- Dust Cap: Papper
- Dimensions
- 8" (203.2mm) Diameter
- 3.25" (83mm) Depth
- Weight: 4.3 lbs (1.95kg)
