Eliminate Feedback the Easy Way!
The Feedback Ferret D from Peavey is a special stereo processor that locates and suppresses frequencies that are feeding back in a sound system. When plugged in between the main outputs of a mixer and the power amplifier of a PA system, 16 digital filters analyze the audio for offending feedback frequencies. Custom algorithms help the Feedback Ferret D distinguish between music and feedback loops. When feedback is detected, the troublesome frequencies are instantly suppressed without interrupting the program material.
The Feedback Ferret D can be used time and time again without the need to adjust its parameters, making it a great "set-and-forget" problem solver for sound installations. It can operate in dual channel stereo mode, or in dual mono mode to fight feedback in two separate audio chains. A "defeat" switch on the rear panel locks the controls on the front panel. The Feedback Ferret D can also be set up to recall the last settings used, or revert back to preset 1 on power up. You can save 4 different presets.
Features
- Dynamically suppresses feedback using sophisticated "search & destroy" filters that find, lock in and kill offending frequencies
- Sixteen individual filters can operate simultaneously (eight dynamically react to input changes)
- Stereo or "dual mono" operation which enables 32 dynamically-controlled filters
- Set-and-Forget operation in fixed installations such as churches and auditoriums
- Four presets for your most common performance venues

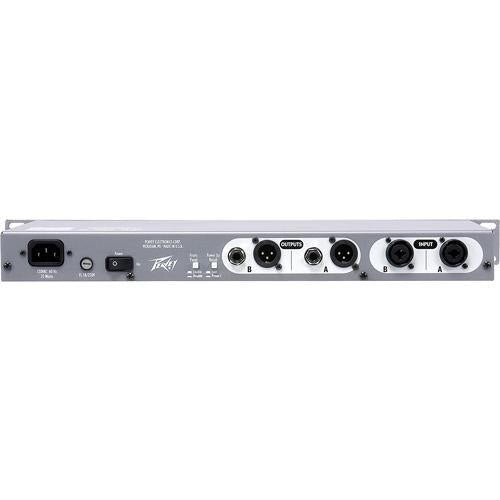

- Rear panel defeat button locks the front panel controls
- Extra "panic" filters for quick control of sudden, severe feedback
- Balanced XLR and TRS inputs and outputs
- 24-bit converters and a sample rate of 48 kHz
Specifications
- Filter Type: 16 digital dynamically-controlled notch filters (32 in dual mono mode)
- Frequency Bands: 1/12 octave
- Number of Channels: 2
- Inputs: 2 x Balanced Combo XLR 1/4" TRS
- Input Level: +4 dBu
- Maximum Input Level
- Input Sensitivity:
- +4 dBu nominal
- +18 dBu full scale
- Outputs
- 2 x Balanced XLR
- 2 x Balanced TRS
- Output Level: +4 dBu
- Maximum Output Level
- Output Drive:
- +4 dBu nominal
- +18 dBu full scale
- Converters: 24-bit
- Sample Rate: 48 kHz
- Frequency Response: +/- 0.5 dB (20 Hz to 20 kHz, ref. 1 kHz)
- Dynamic Range
- 103 dBr @ 1 kHz ref to +18 dBu Output
- 22 Hz to 22 kHz unweighted
- # Of Rack Space: 1U (one rack space)
- Power: 120VAC, 60 Hz, 25 Watts
- Dimensions (WxDxH): 19 x 8 x 1.75" (48.26 x 20.32 x 4.45cm)
- Weight: 7.1 lbs (3.95 kg)
