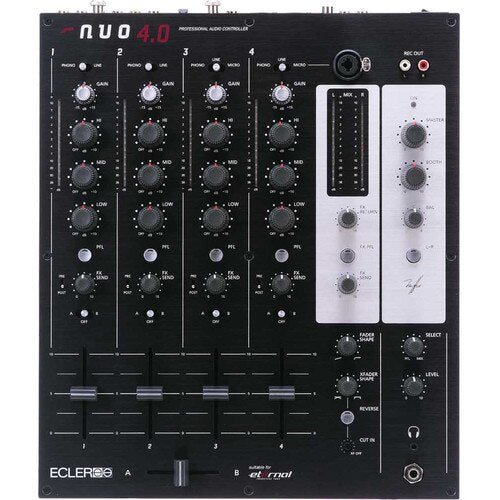

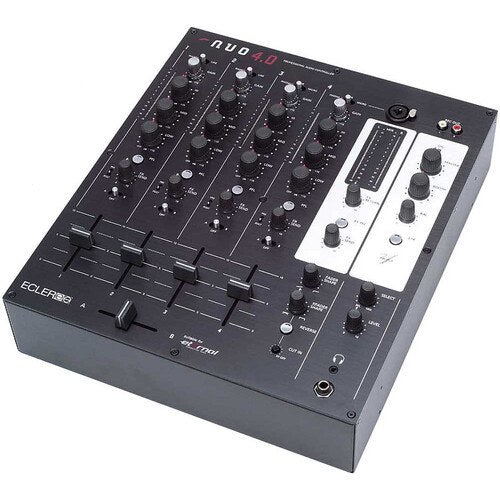

The NUO 4.0 is a 4 channel analogue mixer addressed to professional DJ and installations.
It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest performance.
The NUO 4.0 is tailored to any kind of DJ and music style thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, professional FX loop with Send and Return control in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Whatever the music style you play, the NUO 4.0 will please all your needs.
Its superb sound quality and robust format, plus two balanced XLR microphone inputs and two balanced XLR outputs for Master and Booth make it also a perfect mixer for installations.
Features
- 4 mixing channels
- 4 Phono and 4 Line inputs
- 2 balanced XLR Microphone inputs
- Master output XLR and RCA
- Booth output RCA
- VU Meter per channel
- 3 band full cut EQ
- Extra large ergonomic EQ knobs
- FX Send control per channel
- FX Pre/Post fader selector
- Master FX Send, FX Return and FX PFL control
- Fully assignable crossfader
- 60mm long life VCA faders
- 45mm long life VCA crossfader
- Fader and crossfader shape adjustment
- Crossfader Reverse and Cut-In
- Crossfader suitable for ETERNAL
Specifications
- Total # Of Channels: Four

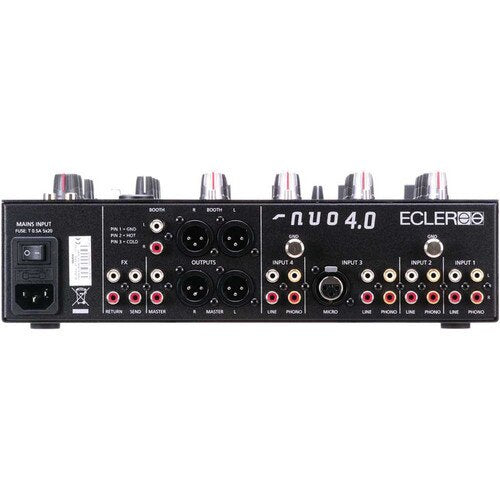

- Input Connectors
- CD/Line Input - RCA Phono x4
- Turntable Input - RCA Phono x4
- Microphone Input - XLR
- Return - RCA Phono
- Output Connectors
- Master Output - XLR x1
- Master Output - RCA Phono x2
- Booth - RCA Phono
- Send - RCA Phono
- Headphone - 1/4" TRS Phone
- Signal to Noise Ratio
- Line: >95dB
- Phono: >90dB
- Microphone: >85dB
- Return: >100dB
- Session: >100dB
- Frequency Response
- Line: 10Hz - 30kHz -1dB
- Phono: RIAA +/- 0.5dB (20Hz - 20kHz)
- Microphone: 10Hz - 25kHz -1dB
- EQ Section
- 3-Band Full Cut
- BASS: -30/+10dB (200Hz)
- MID: -25/+10dB (200 & 6.5kHz)
- TREBLE: -30/+10dB (6.5kHz)
- Power
- Mains: 90-264VAC 47-63Hz
- Power consumption: 38VA
- Dimensions (WxHxD): 12.59 x 14.56 x 3.14" (320 x 370 x 80mm)
