Big Crossover Bang for Your Buck!

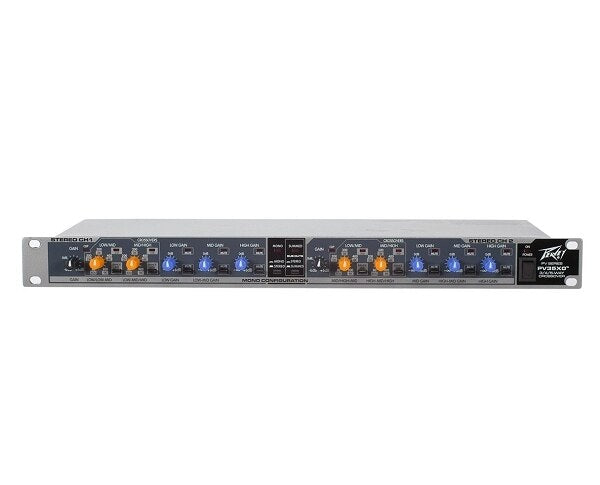

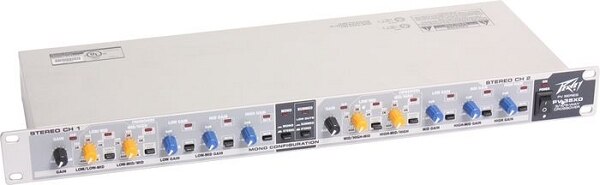

The PV35XO from Peavey is a professional-quality rackmount crossover that offers terrific versatility. The unit can operate in 3-way stereo or 4-or-5 way mono mode and has standard XLR I/O connectors for use with practically any professional sound system.
In addition to low/mid and mid/high crossover frequency controls, each channel offers a master gain control as well as separate high, mid, and low gain controls. Mute switches allow you to silence the high, mid, or low frequencies on either channel. A voltage selector switch allows you to choose the proper voltage for use in the US or abroad.
Features
- Rackmount design fits any standard equipment rack
- Operates in stereo or mono mode for terrific versatility
- Standard XLR I/O connectors for use with practically any professional sound system
- Low/mid and mid/high crossover frequency controls on each channel
- Each channel offers a master gain control as well as separate high, mid, and low gain controls
- Mute switches let you silence the high, mid, or low output on either channel
- Voltage selector switch allows you to choose the proper voltage for use in the US or abroad
Specifications
- Filter Type: 3-Way or 4/5-Way, Selectable
- Operating Modes: Stereo or Mono, Selectable
- Crossover Frequencies: 80Hz - 9kHz
- Gain Range: 12dB
- Controls
- 1 x Power Switch
- 1 x Mode Selector Switch
- 1 x Stereo/Summed Switch
- 4 x Crossover Frequency Knobs
- 4 x Range Buttons
- 2 x Master Gain Knobs
- 2 x Low Gain Knobs
- 2 x Mid Gain Knobs
- 2 x High Gain Knobs
- 6 x Mute Buttons
- 1 x Voltage Selector Switch
- Connectors
- 1 x AC Power Input
- 2 x XLR Inputs
- 6 x XLR Outputs
- Maximum Input Level: Not Specified by Manufacturer
- Maximum Output Level: Not Specified by Manufacturer
- Frequency Response: 20Hz - 20kHz
- Total Harmonic Distortion (THD): 0.005%
- Signal to Noise Ratio: -92dB
- Power: 120-240VAC 50/60Hz
- Dimensions (WxDxH): 8.6 x 20.25 x 4" (219 x 514 x 102mm) (Packaged)
- Weight: 5 lbs (2.3kg)
