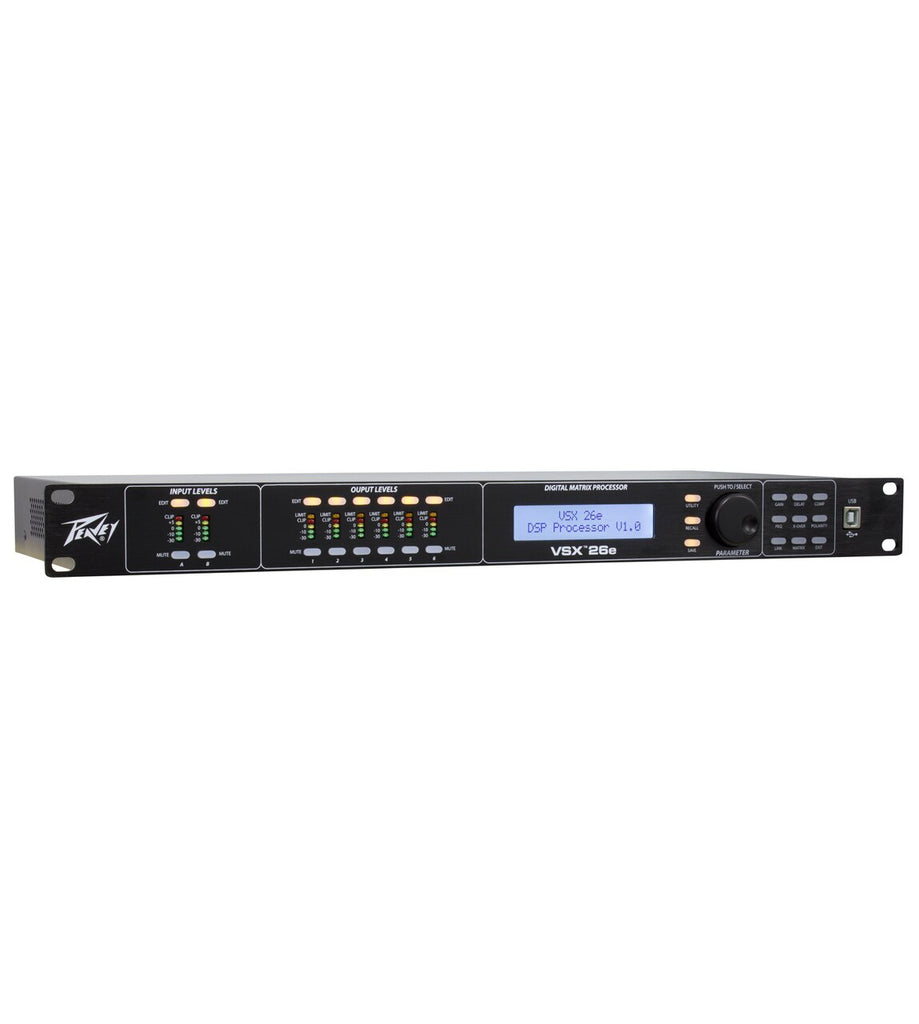

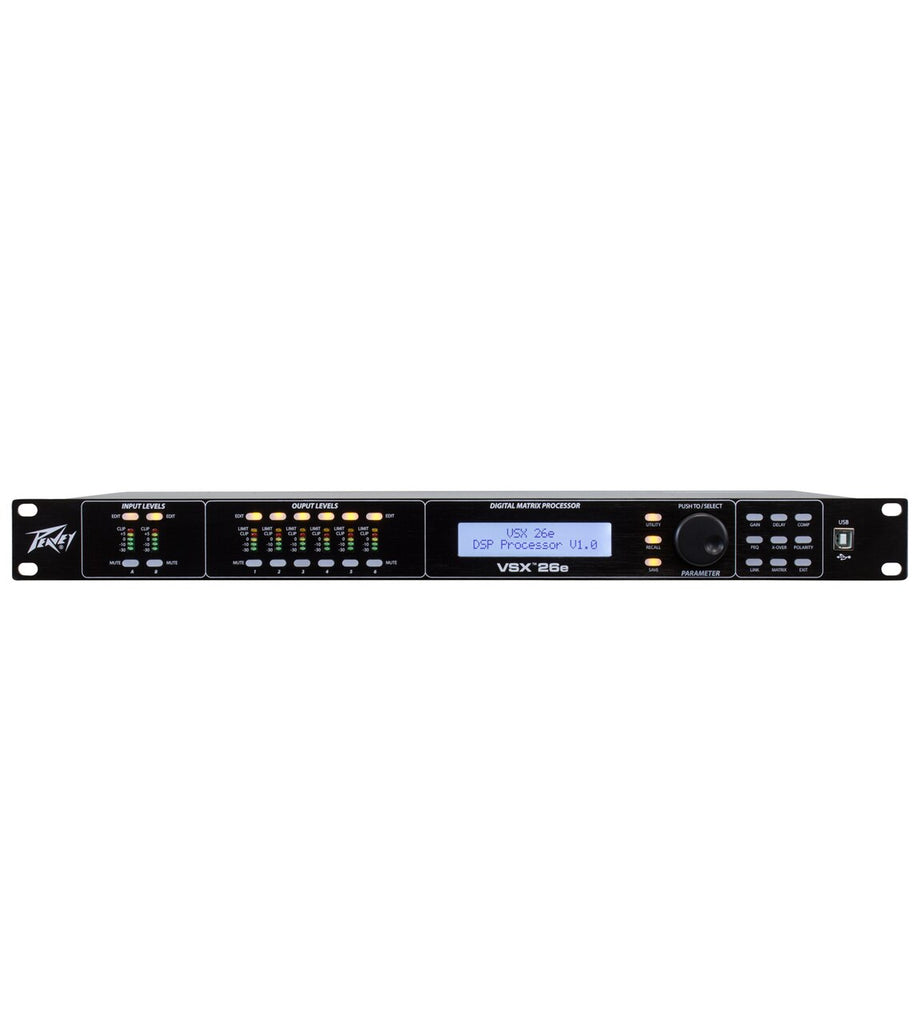

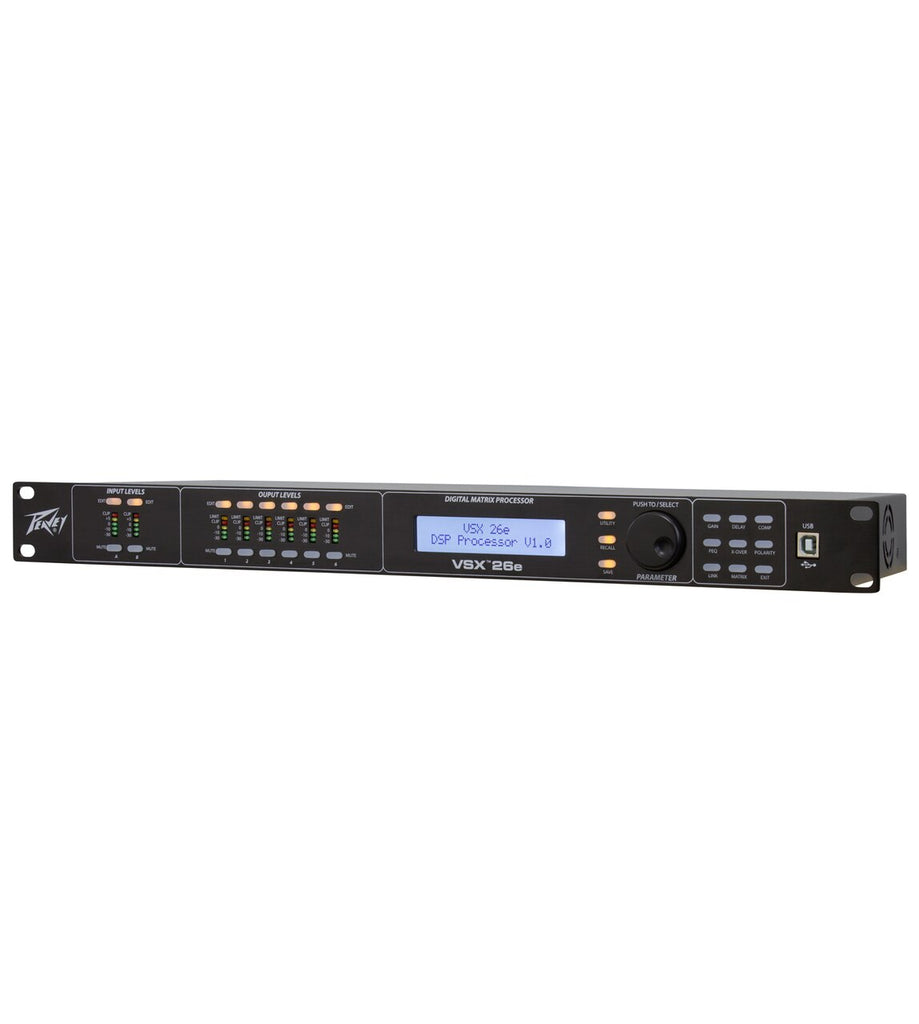

Lets you take control of every facet of your sound reinforcement. The VSX 26 from Peavey is a 2 input/6 output loudspeaker management system for use in single or multi-zone applications. The unit is completely configurable from the front-panel screen, and includes PC software that provides a high-resolution GUI for easier system control. Aside from crossovers the processor also features extensive DSP, both on input and output. DSP includes EQ, compression/limiting and delay. An RTA microphone input with switchable phantom power is available on the front panel.
Features
- 2 input/6 output loudspeaker DSP management system
- Channel 1 XLR also functions as an AES/EBU input
- RTA microphone input on front panel with switchable +48V phantom power
- 24-bit, 256x over-sampled Delta-Sigma analog-to-digital and digital-to-analog converters functioning at 48kHz
- Input DSP includes EQ, compressor/limiter and delay
- Output DSP features crossover/band-pass filter (Butterworth, Bessel, Linkwitz-Riley), parametric EQ (5-band, high-pass, low-pass notch, horn EQ, all-pass), compressor/limiter and delay with polarity inversio
- nFully adjustable crossover points
- Built-in signal generator (white, pink and sine)
- 2 USB jacks on front panel for connection of memory stick/jump drive for preset storage and system update and computer connection for controlling the unit from the GUI
Specifications
- Frequency Response: 20Hz to 20kHz, +/-0.5dBr, referenced @ 1kHz
- Dynamic Range: 105dB
- Input Connections: 3 x XLROutput Connections: 6 x XLR
- Input Impedance: 4.4kΩ
- Output Impedance: 150ΩMaximum Input Level: +24dB
- Maximum Output Level: +24dBu
- Sample Rate: 48kHzRTA Mic Phantom Voltage: +48V
- Crosstalk (Main Outputs): Not specified by manufacturer
- THD & Noise: 0.007% (20Hz to 20kHz, 22kHz BW filter, +4dBu signal with 20dB headroom
- Power Requirements: 110V, 60Hz
- Dimensions: 19 x 8.5 x 1.75" (483 x 216 x 45mm)
- Weight: 9lbs (4.1 kg)
