A different kind of dynamics processing

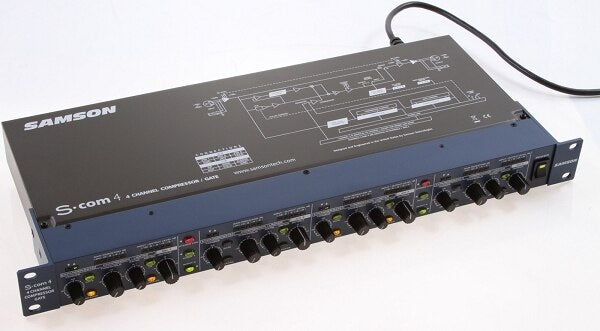

The S com4 provides four channels of dynamics processing with an expander/gate and compressor/limiter on each channel. The four channels operate independently or in stereo pairs.
The compressor/limiter section of the S com4 includes variable threshold, ratio and output levels. The expander/gate section features a continuously variable threshold control as well as a switch for fast or slow release times. An enhancer switch restores high frequencies that are sometimes diminished by heavy compression.
Multi-segment LED metering on the S com4 displays input/output level, as well as gain reduction. Balanced inputs and outputs, with +4dB or -10dBV operation allows the unit to interface into any professional environment.
Features
- Four channel compressor/limiter, expander/gate with enhancer
- Individual compression threshold and ratio controls on each channel
- Expander/Gate with variable trigger control and switchable fast/slow release
Smart Knee Detector
- SKD circuit switches from soft to hard knee based on the level of input signal applied
- 5 Segment LED meters for input/output levels and gain reduction on each channel
- LED's on the gate show gate position open or closed
- Four channels linkable as two stereo pairs
Specifications
- Function: Compressor/Limiter with Expander/Gate
- Number of Channels: 4

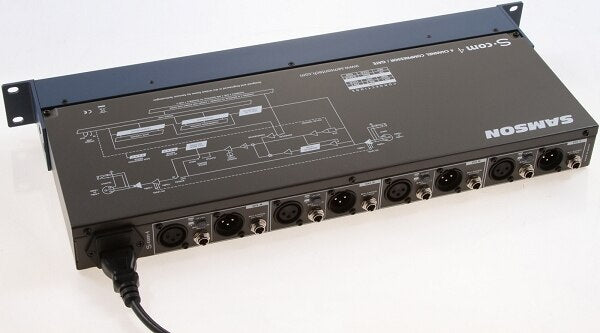

- Inputs: 4 x XLR, 4 x 1/4" TRS phone
- Output: 4 x XLR, 4 x 1/4" TRS phone
- Maximum Input Level: +21dBu
- Compression Threshold: -40dBu to +20dBu
- Compression Ratio: 1:1 to infinity:1, variable
- Attack Time: Auto: Variable 0.3ms/20 dB to 300ms/20 dB
- Release Time: Auto: Variable 0.05 to 5 Sec
- Gate Threshold: Off to +10dB
- Gate Rate: Release: Fast or Slow
- Maximum Output Level: +21dBu
- Make-up Gain: -20dB to +20dB
- Frequency Response: 20Hz to 20kHz
- Dynamic Range: 95dBu
- Noise: Not specified by manufacturer
- Dimensions: 1U rack mount, 7 3/4" deep
- Specialties: Unit will operate at either +4dB or -10 dB, switchable
