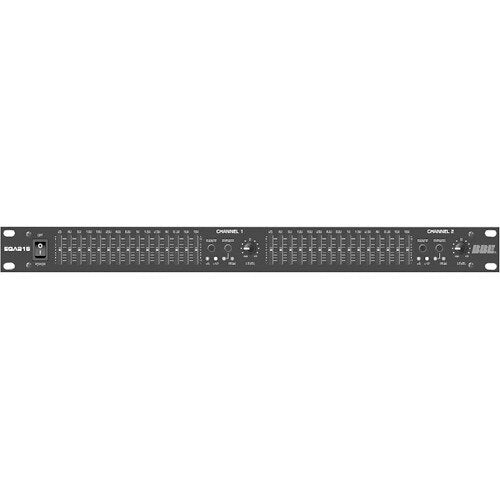

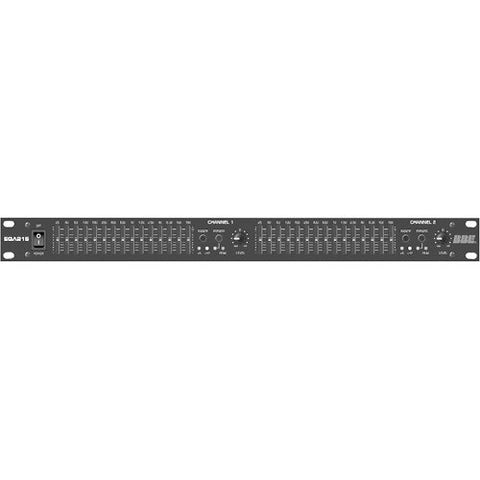

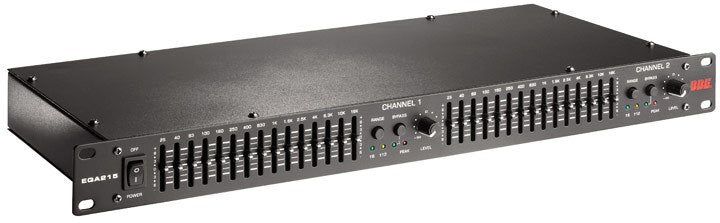

The EQA215 from BBE is a dual channel, 15-band graphic equalizer, ideal for use in live sound rigs and installed setups such as studio, stage, DJ and sound contracting.
The equalizer uses constant Q filters that are narrow enough to prevent unwanted interaction between filters, yet wide enough to deliver exactly the type of correction curve required. Dual boost/cut ranges of +/-6dB or +/-12dB are provided for added flexibility along with a bypass switch, signal clip indicator, output gain control and selectable line voltage.
Features
- Dual fifteen band constant Q graphic equalizer
- Ideal for studio, stage, DJ and sound contracting
- Selectable control range for 6dB or 12dB boost/cut
- Clip indicator and true hard-wire bypass
- Line voltage switchable between 115 and 230VAC operations
Specifications
- Filter Type: Graphic, constant Q
- Number of Channels: 2

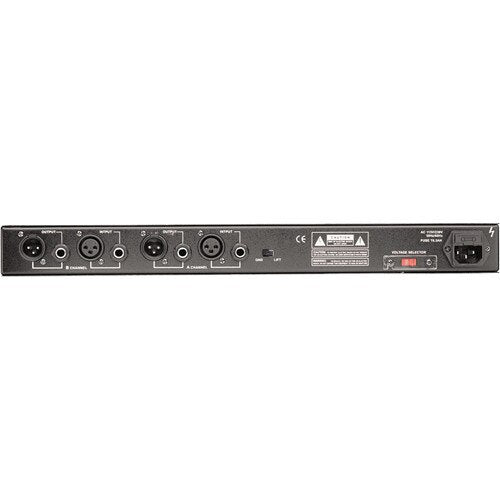

- Inputs
- 2 x XLR
- 2 x 1/4" TRS phone
- Outputs
- 2 x XLR
- 2 x 1/4" TRS phone
- Maximum Input Level: Not specified by manufacturer
- Frequency Bands: 15
- Bandwidth: 2/3 octave
- Range (Boost/Cut): +/-6dB or +/-12dB selectable
- Maximum Output Level: Not specified by manufacturer
- Frequency Response: 20Hz to 20kHz +0,-2dB
- Dynamic Range: Not specified by manufacturer
- Noise: SNR: 96dB below maximum level, A-weighted
- Dimensions: 19" 1U rack-mount
- Specialties: True hard-wire bypass
