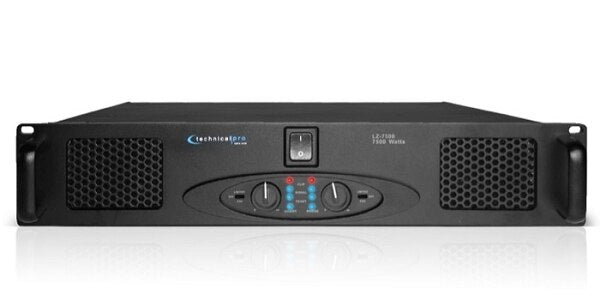

Technical Pro LZ7500 2U Professional 2-Ch. Power Amplifier

The LZ7500 2U Professional 2-Ch. Power Amplifier from Technical Pro is a two-channel studio power amplifier. The LZ7500 will stay cool with its dual fan cooling system and advanced Complete Air Flow (CAF) technology. CAF technology is a ventilation system that boasts an air filter with automatic variable-speed fan ensuring a smooth and quiet operation. The device fits into a 2U rack mountable design that can fit it any standard rack. The iridescent blue LED meters signal and clip indicators are just a glance away, which will allow you to monitor your levels with one quick look at the front panel.



The unit has both balanced XLR and 1/4" inputs and Speakon and Banana Binding Post outputs, allowing you to connect to virtually any sound system. Each of the two channels is built with individual clip-limiter switches, which will guarantee no distortion if the input signal varies and we know it will vary.



The LZ7500 is a top class device through and through. The high quality components and rugged design will guarantee a long life and quality output.



• The LZ7500 is a two-channel studio power amplifier built like a beast
• The unit fits into a 2U rack mountable design that can fit it any standard rack

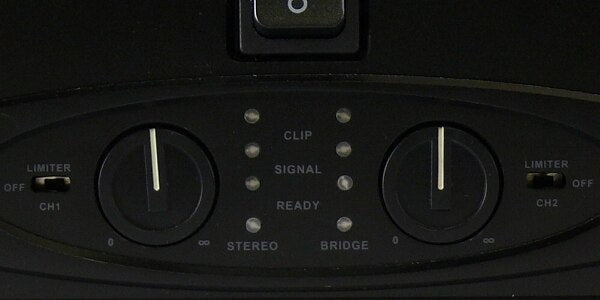

• The iridescent blue LED meters signal and clip indicators are just a glance away, which will allow you to monitor your levels with one quick look at the front panel
• The LZ7500 will stay as cool as cucumber with its dual fan cooling system and advanced Complete Air Flow (CAF) technology. We all know how noisy equipment fans can be at times but with CAF technology you need not worry. The CAF technology is a ventilation system that boasts an air filter with an automatic variable-speed fan ensuring a smooth and quiet operation

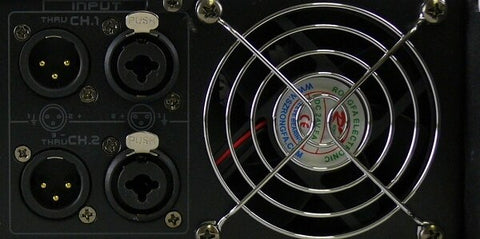

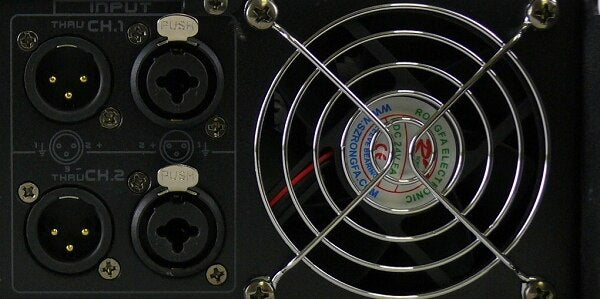

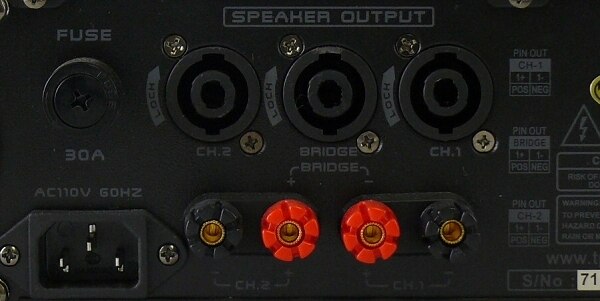

• The unit has both balanced XLR and 1/4" inputs and Speakon and Banana Binding Post outputs, allowing you to connect to virtually any sound system
• Each of the two channels is built with individual clip-limiter switches, which will guarantee no distortion if the input signal varies and we know it will vary
• The LZ7500 includes high quality components and a rugged design, which will guarantee a long life and quality output
• Engineered for the critical demands of the professional DJ, it delivers clean, dynamic power with the legendary sound quality and reliability that pros depend on, delivering crystal-clear highs, smooth and accurate mids, and powerful, chest-thumping lows
• Incredible performance and the ultimate in reliability under harsh conditions sets the LZ7500 amplifier apart from all others



• Number of Channels: 2
• Power Rating
• 7500W peak power
• 2300W @ 2 ohms
• 1600W @ 4 ohms
• 1000W @ 8 ohms
• Frequency Response: 20Hz-20kHz ±1 dB
• Signal to Noise Ratio: 105 dB unweighted 20Hz-20kHz
• Total Harmonic Distortion (THD): <0.02%
• Input Sensitivity: .775V (0dBu)
• Input Impedance: 20 kohm balanced/ 10 kohm unbalanced
• Damping Factor: >200 @ 8 ohm

• Input: Balanced XLR, 1/4
• Output: Speakon, banana binding post
