Big Power Dependable Performance!
The PG3800 from Samson is a professional-quality stereo power amplifier designed for installed applications. The 2RU chassis houses a Class A/B amplifier that provides 900W per channel at 4 Ohms in stereo mode. It offers parallel, stereo, and bridged-mono output modes to meet any professional need.
High-quality XLR and TRS input connectors are provided, along with five-way binding post and Speakon output connectors, allowing you to use the PG2200 with virtually any sound system. Dual variable-speed cooling fans and three-stage protection circuitry keep your system running smoothly.
Other useful features of the amplifier include a selectable 30Hz low-cut filter and a selectable limiter. The low-profile appearance allows discreet placement.
Features
- Discreet 2RU chassis
- Class A/B amplifier provides 900W per side at 4 Ohms, or 3800W in bridged-mono mode at 4 Ohms
- Parallel, stereo, and bridged-mono modes
- Dual variable-speed cooling fans
- Three-stage protection circuitry with LED indicators
- Selectable 30Hz low-cut filter
- Selectable limiter
- XLR and TRS input connectors
- Five-way binding post and Speakon output connectors
Specifications
- Power Rating
- Stereo Mode:
- 2 x 560W @ 8 Ohms
- 2 x 900W @ 4 Ohms
- 2 x 1800W @ 2 Ohms
- Bridged Mode:
- 1800W @ 8 Ohms
- 3800W @ 4 Ohms
- Damping Factor: Not Specified by Manufacturer
- Input Sensitivity: 1.15V (+3.4dBu)
- Input Impedance
- 10 kOhms, Unbalanced
- 20 kOhms, Balanced
- Gain: 34dB
- Frequency Response: 25Hz - 25kHz, +0/-1dB
- Signal-to-Noise Ratio: 100dB
- Total Harmonic Distortion (THD): < 0.03%
- Input Connections
- 2 x XLR Inputs
- 2 x 1/4" TRS Inputs
- 1 x AC Power Input
- Output Connectors
- 2 x Pairs of 5-Way Binding Posts
- 2 x Speakon Outputs
- Controls Front Panel
- 1 x Power Switch
- 2 x Volume Control Knobs

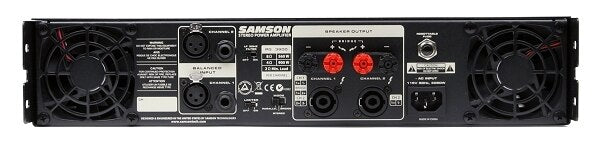

- Controls Rear Panel
- 1 x Low-Cut Filter Switch
- 1 x Mode Selector Switch
- 1 x Limiter Switch
- Indicators
- 1 x Power LED
- 1 x Protect LED
- 2 x Signal LEDs
- 2 x Clip LEDs
- Cooling: Dual Variable-Speed Fans
- Dimensions (WxDxH): 19 x 15.7 x 3.5" (483 x 400 x 89mm)
- Weight: 45.2 lbs (20.6kg)
