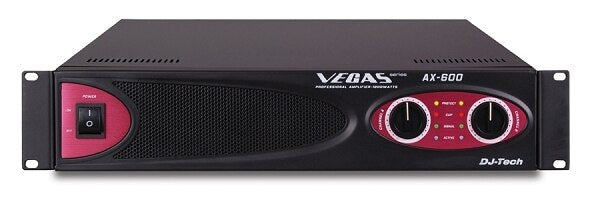

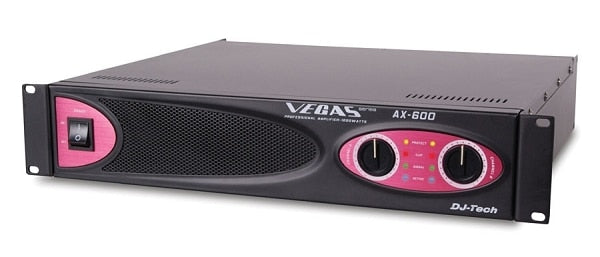

The AX Series of amplifiers seeks to provide outstanding value, quality and power amplification for live and studio professionals. Ranging from 500W to 5000W of power output, the AX series seeks to provide a power amplification solution for any level of need. Featuring XLR inputs, Speakon and binding post outputs, the stereo / parallel / bridge mono modes the AX series also provides customization options for any use.
Features
- 2 x 600Watts MAX output
- Wide dynamic signal Limiter
- Font Panel with Level control
- Normal / Signal / Clipping / Protection LED display
- Bridge / Stereo Mode
- Balanced XLR or 1/4” TRS input

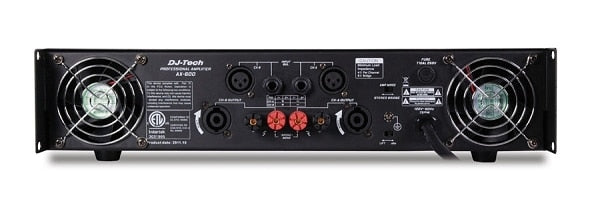

- Heavy load, dual Speakon output connector
Specifications
- 2 x 600Watts MAX output
- Power Output (THD 1%):150W x 2 / 8 ohm; 250W x 2 / 4 ohm; 520W / 8 ohm (Bridge)
- Limit Checking Performance
- Freq. Response: 20 Hz-20kHz
- SN Ratio: >85 dB
- Damping Factor: 200
- Impedance: 1V 10k ohm
- Crosstalk: -85dB @1kHz
- Power Input: AC110/115/120V 60Hz or AC220/230/240V 50Hz (Depend on distribution area)
- Dimension: 482(W) x 415 (D) x 105(H) mm
