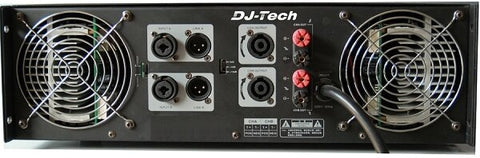

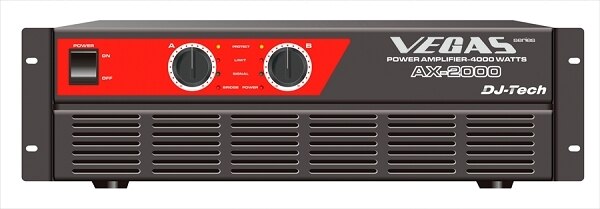

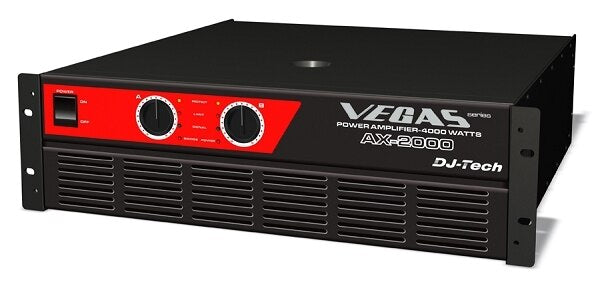

The AX Series of amplifiers seeks to provide outstanding value, quality and power amplification for live and studio professionals. Ranging from 500W to 5000W of power output, the AX series seeks to provide a power amplification solution for any level of need. Featuring XLR inputs, Speakon and binding post outputs, the stereo / parallel / bridge mono modes the AX series also provides customization options for any use.
Features
- 2 x 2000 Watts Power Amplifier
- Stereo / Bridge / Parallel Mode configuration
- Input Sensitivity selection of 0/+4/+10dB
- Overload / Overheat / Short Circuit Protection
- Embedded ACL technology
- Intelligent Temperature Control
- Suitable for 2Ohm Loading
Specifications
- MAX Power output: 2 x 2000 Watts
- Rated Power output:
- 500 Watts x 2 @8Ohm, THD=0.05%
- 750 Watts x 2 @4Ohm, THD=0.05%
- 1000 Watts x 2 @2Ohm, THD=0.05%
- 1000 Watts x 1 @16Ohm Bridge, THD=0.1%
- 1500 Watts x 1 @8Ohm Bridge, THD=0.1%
- 2000 Watts x 1 @4Ohm Bridge, THD=0.1%
- S/N Ratio: >95dB
- Frequency Response: 20-20kHz @ +/- 1dB
- Damping Factor > 200
- Input Impedance: Balanced = 20k, unbalanced = 10k
- Power Input: AC110/115/120V 60Hz or AC220/230/240V 50Hz (Depend on distribution area)
- Dimension: 483W×132H×415D mm
