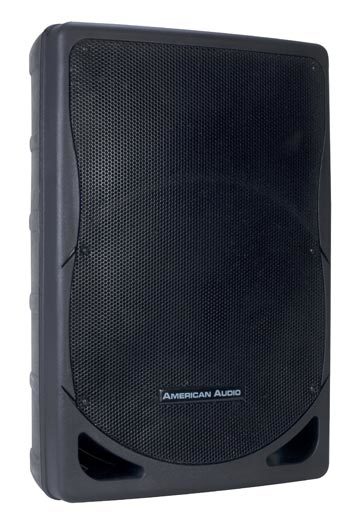

The XSP-15A from American Audio is a professional 2-way loudspeaker ideal for performances, lectures, and more. The unit has a 15" woofer and a 1.75" compression tweeter, each with neodymium components to deliver crisp, clear audio with a wide frequency response. Dual internal amplifiers with a total power of 400W provide strong audio with low distortion, while a time-aligned crossover ensures that each driver section performs to its maximum potential. Vented bass ports help to extend low frequency response.

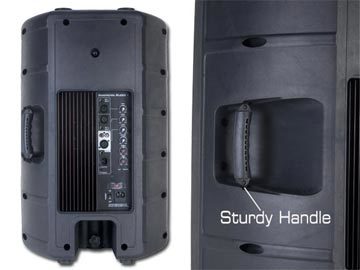

The rear panel features an integrated mixer complete with 2 sets of XLR and 1/4" mic inputs, as well as XLR and RCA line inputs. It also offers 1/4" and XLR line outputs for connecting additional speakers and devices. The mixer has treble and bass controls, plus channel and master volume controls. The cabinet has a rugged ABS nylon fiber construction with a full grille for excellent durability on the road. An integrated handle provides easy transportation, while a pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling. The speaker has a selectable operating voltage for international use.
Features
- The speaker has a 2-way design with a 15" woofer and a 1.75" compression tweeter, each with neodymium components to deliver crisp, clear audio with a wide frequency response
- Dual internal amplifiers with a total power of 400W provide strong audio with low distortion
- Time-aligned crossover ensures that each driver section performs to its maximum potential
- Vented bass ports help to extend low frequency response
- Rear panel has an integrated mixer complete with 2 sets of XLR and 1/4" mic inputs, as well as XLR and RCA line inputs. It also offers 1/4" and XLR line outputs for connecting additional speakers and devices
- Rear panel treble and bass controls, plus volume controls for master, mic, and line
- Rugged ABS nylon fiber construction with a full grille for excellent durability on the road
- Integrated handle for easy transportation
- A pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling
- Selectable operating voltage for international use
Specifications
- Active or Passive: Active
- Frequency Response: 20Hz - 20kHz
- Maximum Amplifier Power: 400W
- Maximum Sound Pressure Level (SPL): Not Specified by Manufacturer
- Nominal Sensitivity
- Mic: -40dB (10mV)
- Line: -20dB (100mV)
- Output: 97.4 ±2dB/m/W
- Impedance: Not Specified by Manufacturer
- Crossover: 4.8kHz
- Low Frequency Driver: 15" (381mm) Woofer
- High Frequency Driver: 1.75" (44mm) Compression Tweeter
- Dispersion: 90 x 50° (HXV)
- Enclosure Material: ABS Nylon Fiber Cabinet with Full Metal Grille
- Connectors
- 2 x XLR Mic Inputs
- 2 x 1/4" Mic Inputs
- 1 x XLR Line Input
- 1 x RCA Line Input
- 1 x XLR Line Output
- 1 x 1/4" Line Output
- 1 x Power Input
- Controls
- 1 x Power Switch
- 1 x Master Level Control Knob
- 1 x Mic Level Control Knob
- 1 x Line Level Control Knob
- 1 x Treble Knob
- 1 x Bass Knob
- 1 x Voltage Selector Switch
- Power
- 115-230VAC, 50/60Hz, Switchable
- Consumption: 12W
- Dimensions (LxWxH): 17 x 15 x 27" (430 x 380 x 685mm)
- Weight: 57 lbs (26kg)
