Highly compact, excellent quality.

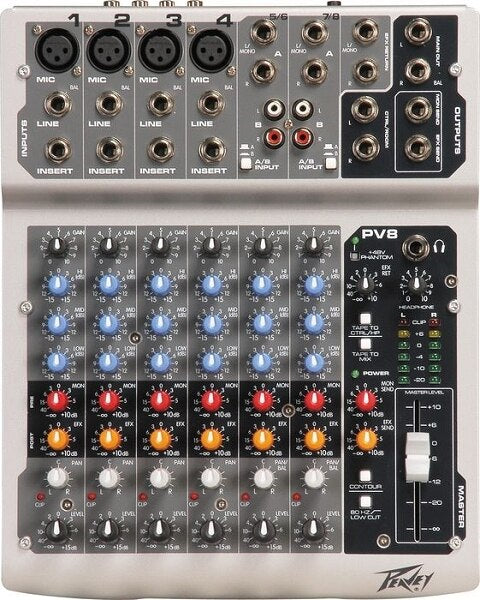

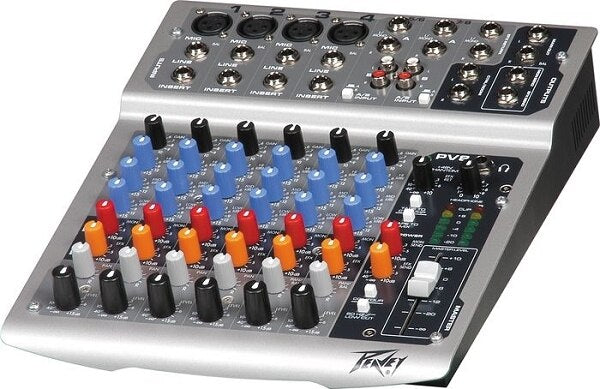

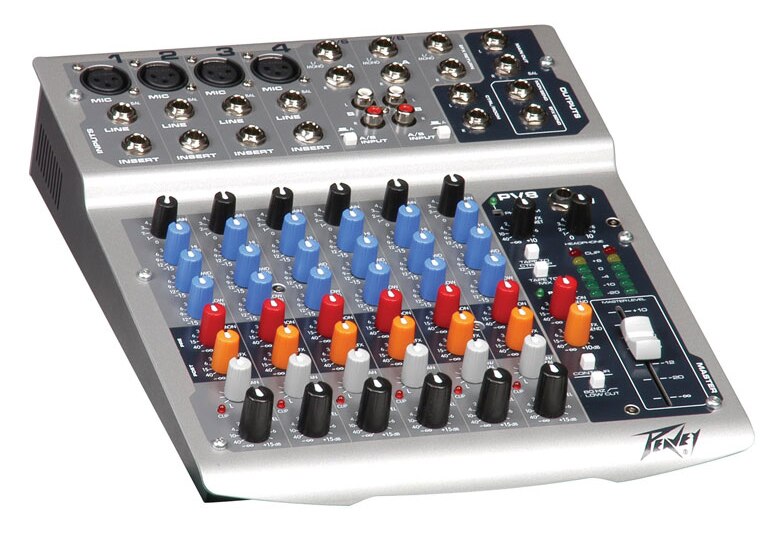

The Peavey PV8 Sound Reinforcement Mixer features a total of 8 input channels and RQ (Reference Quality) microphone inputs that deliver transparent audio fidelity with low noise. Two of the 8 input channels are dedicated stereo channels for keyboards, stereo player devices, drum machines, etc.
A 3-band EQ section is featured on all channels and globally switched +48V phantom power is supplied to condenser microphones. The PV8 is an ideal sound reinforcement mixer for small venue installation, schools, house-of-worship audio, etc.
Features
- 8-channel chassis with two dedicated stereo channels
- RQ (Reference Quality) microphone preamps
- 3-band EQ section on all channels
Specifications
- Total # Of Inputs: 8
- Mic/Line Inputs
- 8 Line: 1/4" TRS Phone
- 4 Microphone: 3-pin XLR
- Stereo Line Inputs: 2 Stereo
- In-Line Inputs/Returns: No
- AUX Sends: Single Stereo Effects Output
- AUX Returns: Stereo L/R Effects Return
- Inserts: All Channels
- BUS (Group) Outputs: Stereo Output
- 2 Trk Master I/O: CTRL Room: Stereo Paired 1/4" Phone
- ALT I/O
- ALT Stereo: L/R Stereo Paired 1/4" Output
- Main Output: L/R Stereo Paired 1/4" Output
- Monitor Outputs: Monitor Send
- EQ Section: 3-Band
- Solo/Mute: All Input Channels
- Channel Level Control: 60mm Faders
- Trim/Gain Control: Rotary Potentiometers
- Phantom Power: +48V Phantom individually switched
- Metering: 6 Segment, Peak Reading (0dB = +4dBu)
- Frequency Response: 20Hz to 20kHz < 1dB
- Signal-to-Noise Ratio: Master Left / Right: 102dB
- Total Harmonic Distortion (THD): <0.01% 20Hz to 20kHz Mic to Left/Right Output (10Hz to 80kHz BW)
- Power Supply: Domestic: 16VAC 60Hz, 12W Nominal
- Dimensions (WxHxD): 9.32 x 2.76 x 11.63" (23.7 x 7.0 x 29.5cm)
- Weight: 7 lbs (3.17kg)
