Pro Mixer with USB Computer Connection

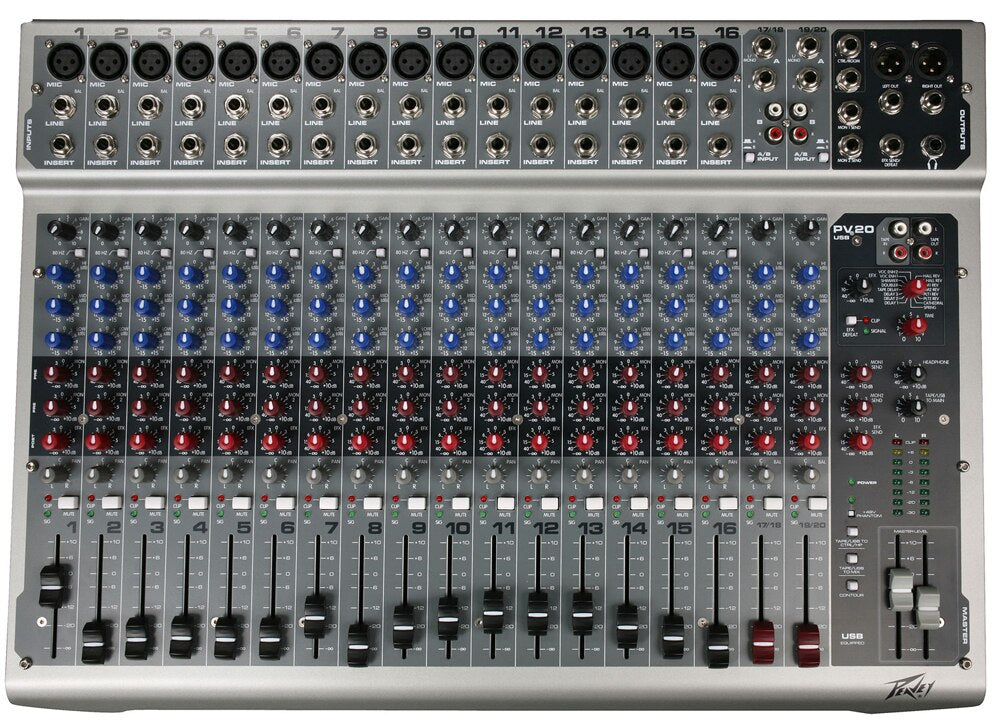

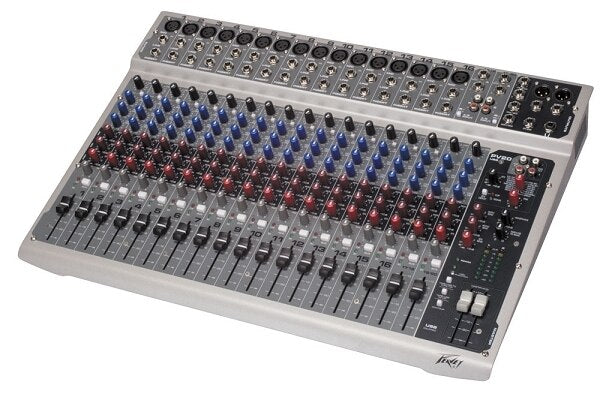

The Peavey PV20 USB 20-Channel Recording Mixer is a cost effective desktop audio console that is sure to satisfy home and project producers of all types. The PV20 USB features 20 input channels with line inputs and super-low noise microphone preamps. The mixer's USB connection is compatible with Mac OSX, Windows XP, ME and 200 operating systems.
Digitize and playback stereo audio with your favorite recording software application. An internal DSP effects engine hosts an array of on-board effects that include, delays, reverbs, chorus effects and more. Additional features include comprehensive LEDs and +48V phantom power (globally switched).
Features
- USB connection to Mac or Windows OS
- Internal DSP effects that include reverb, delay and more
- 3-band EQ on every channel
- Super low-noise microphone preamps
- Stereo channels
Specifications
- Total # Of Inputs: 20 Channels
- Mic/Line Inputs
- Balanced XLR Microphone x16
- 1/4" TRS Phone Line x20
- Stereo Line Inputs: 1/4" TRS and RCA Phono Line x2
- In-Line Inputs/Returns: No
- AUX Sends: 2 - Mon and FX Send
- AUX Returns: No Dedicated
- Inserts: 1/4" TRS Phone (all channels)
- BUS (Group) Outputs
- Balanced XLR Control Room Outputs
- Balanced 1/4" TRS Phone Monitor Outputs
- 2 Trk Master I/O: USB
- ALT I/O: RCA Phone A/B In and Out x2
- Monitor Outputs: 1/4" TRS Phone Headphone
- EQ Section: 3-Band
- Solo/Mute: Mute on Every Channel
- Channel Level Control: Fader
- Trim/Gain Control: Rotary Pot
- Phantom Power: +48V Globally Switched
- Metering: Peak LED
- Frequency Response: 14Hz to 25kHz +0dB / -1dB
- Dynamic Range: Not Specified By Manufacturer
- Signal-to-Noise Ratio: -129dBu (EIN)
- Total Harmonic Distortion (THD): < 0.02% 20Hz to 20kHz Mic to L/R Output
- Power Supply: 100-240VAC 50/60Hz 27W
- Dimensions: 22 x 15.75 x 3.5" (56.2 x 40.00 x 8.9cm)
- Weight: 16.3 lb (7.39kg)
